Storage Tank Measurement

Liquid level management,

Garnet’s SeeLeveL II ™ tank fluid monitors are a microprocessor-based digital system that measures the fluid level, volume and temperature in storage tanks. Garnet’s self-powered engineered system will operate reliably for years on battery power making it ideal to operate in remote sites with stationary tanks, frac tanks and poly tanks.

Tank Fluid Monitors for Storage Tanks

Sender Bars

Garnet’s SeeLeveL ™ sender bar is mounted vertically in the tank with the float sliding up and down in accordance with the fluid level. The sender bar measures and sends the fluid level, volume and temperature information through plastic optical fibre to the display providing electrical isolation for hazardous environments. This float system is a proven design giving reliable measurement that provides continuous readings with greater accuracy. The use of Garnet’s digital design rather than analog sensing lowers power consumption to permit better operation with no reading drift or degradation.

Stainless Steel Sender Bar

The stainless steel sender bar is suitable in portable, mobile and and fixed location tanks.

Poylyethylene Sender Bar

This flexible poly tube can be coiled up for shipping and to ease installation in tall tanks. Poly yields a lower cost per foot than stainless steel. Due to reduced rigidity, this version is best suited for fixed location tanks.

Communications

Garnet’s telemetry options provide a wide array of data transfer to organizations looking to take their existing field data operations and move it into their offices – anywhere in the world. By having your data available to you both at your desktop and on the go, you will be able to regulate logistics better,
provide information for regulatory compliance to those that matter faster, and make it possible to reduce costs and save time.

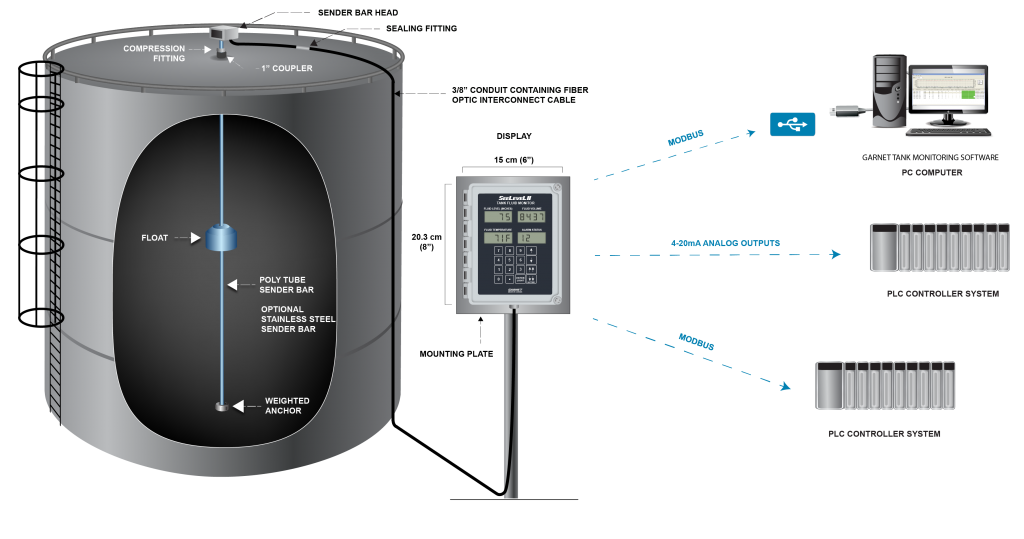

900-D4 Series Options

If you require information related to the stores of chemical, water / brine, refined products, crude, or any other liquids rely on Garnet everyday. Reporting includes Modbus to the PC based Garnet Tank Monitoring software, analog 4-20mA outputs to PLC or Modbus to PLC. Our customers’ ability to view data from another location provides them with peace of mind.

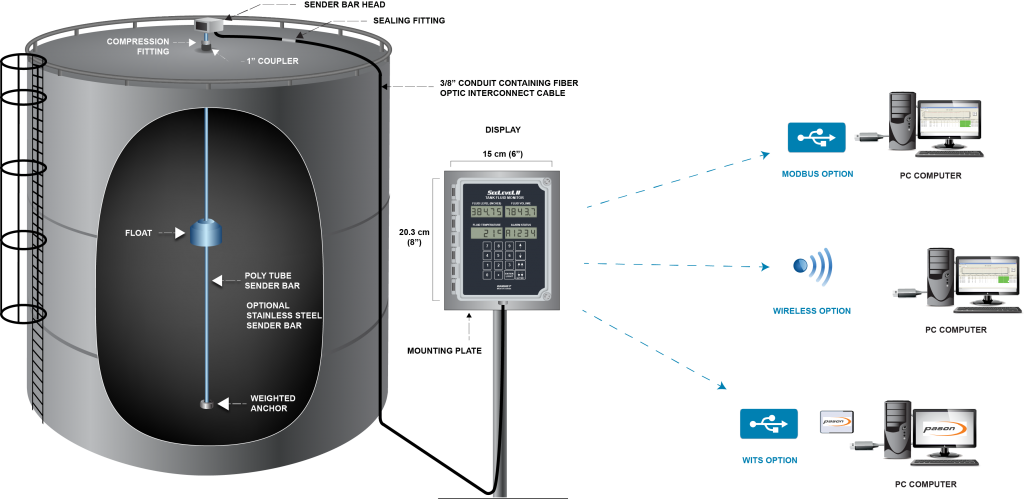

900-D6 Series Options

If you require information related to the stores of chemical, water / brine, refined products, crude, or any other liquids rely on Garnet everyday. Reporting includes Modbus or wireless to the PC based Garnet Tank Monitoring software, and Modbus and WITS (Pason) to customer provided data systems. Our customers’ ability to view data from any location  provides them with peace of mind.
