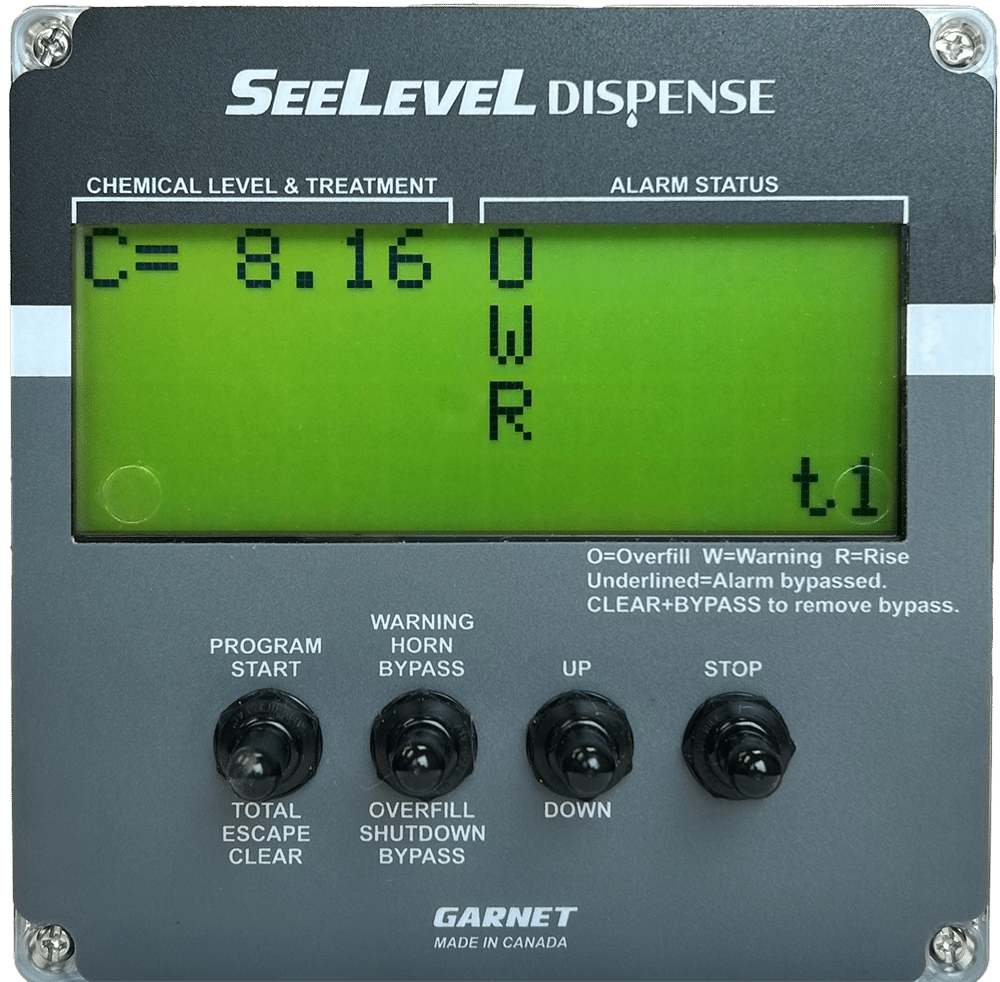

Level and Volume Dispensing System
Model 809-DM
Exclusively distributed by Hernco Fabrication, the SeeLeveL Dispense is a multi-compartment chemical tank monitor for treater trucks. With 1/10" resolution, the SeeLeveL Dispense offers increased accuracy for superior liquid inventory control. With multiple alarm outputs, the Dispense regulates the loading and dispense process to prevent overfill spills and ensure the accurate dispensing of chemicals.
Features
Operation
Resources
Features
- Monitors up to 6 compartments
- 1/10″ Resolution
- Alarm outputs for overfill and dispense control
- Dispenses specific amounts of chemical
Operation
During the loading process, the SeeLeveL Dispense monitors and displays the fluid and will sound a warning horn when the tank level is nearing full. If the tank is nearing an overfil conditions, the Dispense will shut down the pump before the overfill occurs. While treating wells, the operator has the ability to set the dispense volume for any given chemical. This ensures that wells are treated with the proper amount of chemical and assists with inventory control.
Resources
Contact us for more information.
SUPPORT equipment
Truck Gauge Programmer
Model 817-USB
The SeeLeveL™ 817-USB Truck Gauge Programmer is used to program tank calibrations and alarms and to troubleshoot any SeeLeveL™ 800 series system. The USB interface allows tank calibration files to be created and stored on a PC or laptop.
Features
Resources
Features
- Works with all 800 series displays
- Used to test sender bar displays and fiber optic cable
- Operates on four alkaline AA batteries with no memory loss
- 32 memory locations for storing calibration charts
- USB port interfaces with your PC or laptop running our truck gauge programming software
- Simulates both display and sender bar to simplify system testing
- Convenient hand-held aluminum enclosure helps to avoid errors due to interference and static electricity
Resources
817 Truck Gauge Programmer v3.2.2 (select the button below to download the software)
