Transport Product Updates

Welcome to our Transport Products Updates Hub, where we keep you informed about the latest developments and enhancements in our product line. This page is your go-to resource for staying abreast of periodic updates, ensuring you have access to the most current and advanced information regarding our product offerings. Expect to find regular updates on features, optimizations, and important announcements as we continually strive to elevate the standards of our flammable liquids products.

CONTACT US

Please Note: The information provided for new products is based on current availability and specifications. All details, are subject to change as updates become available.

Illustrative image – final design subject to change.

SeeLeveL Flair Logo-colour

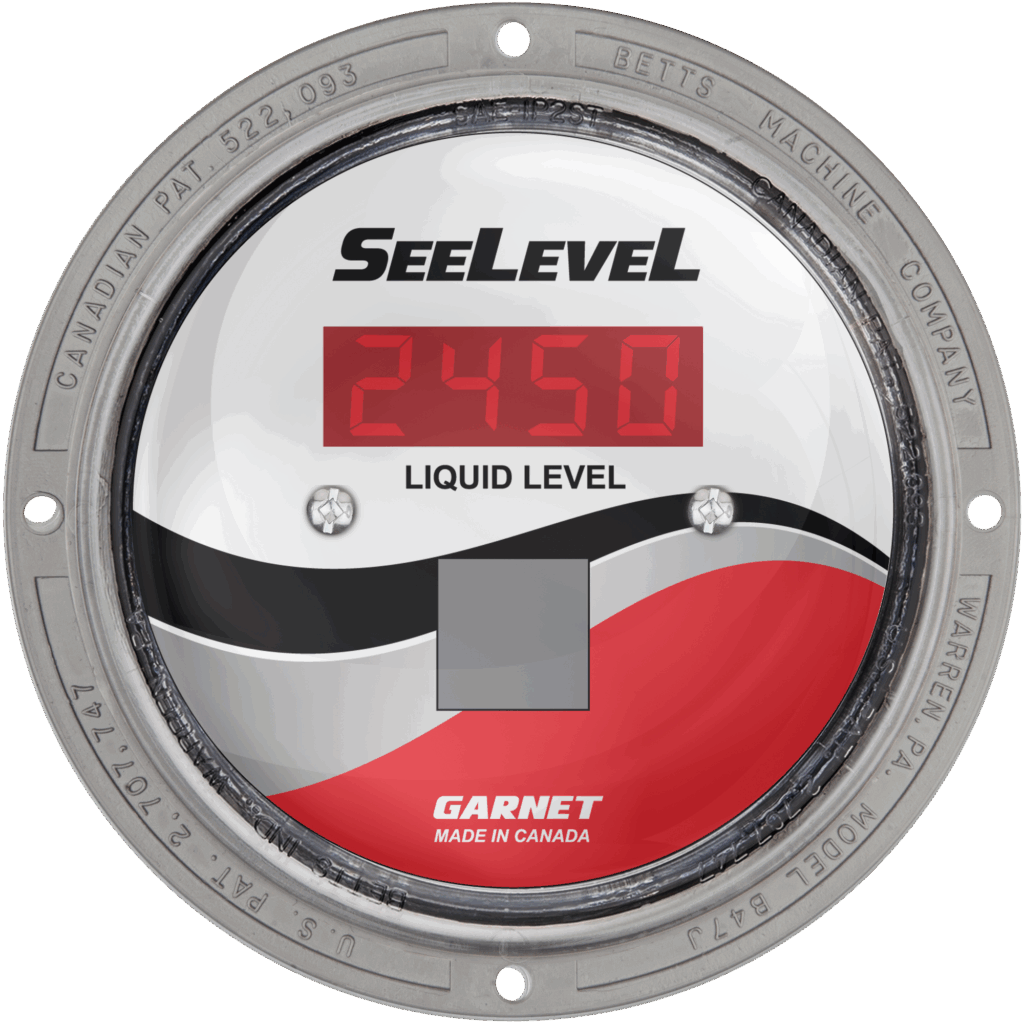

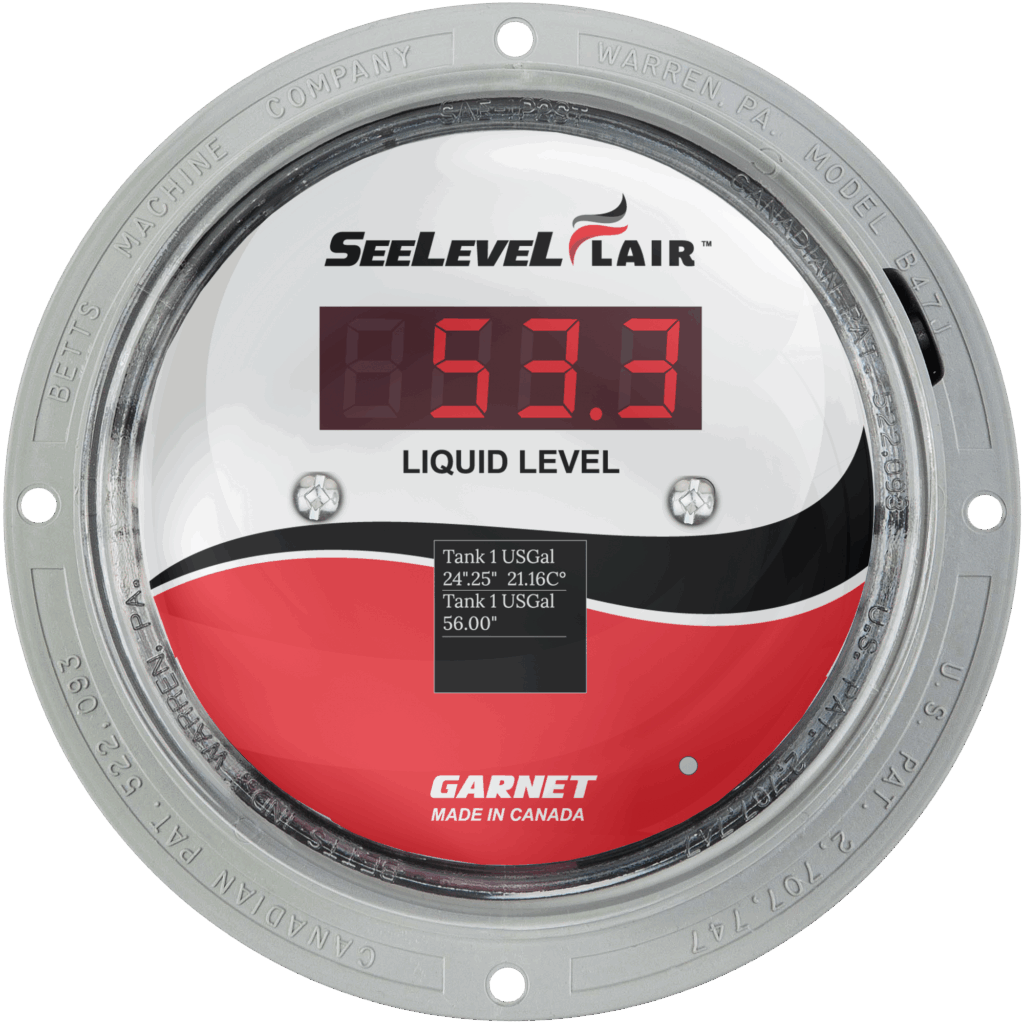

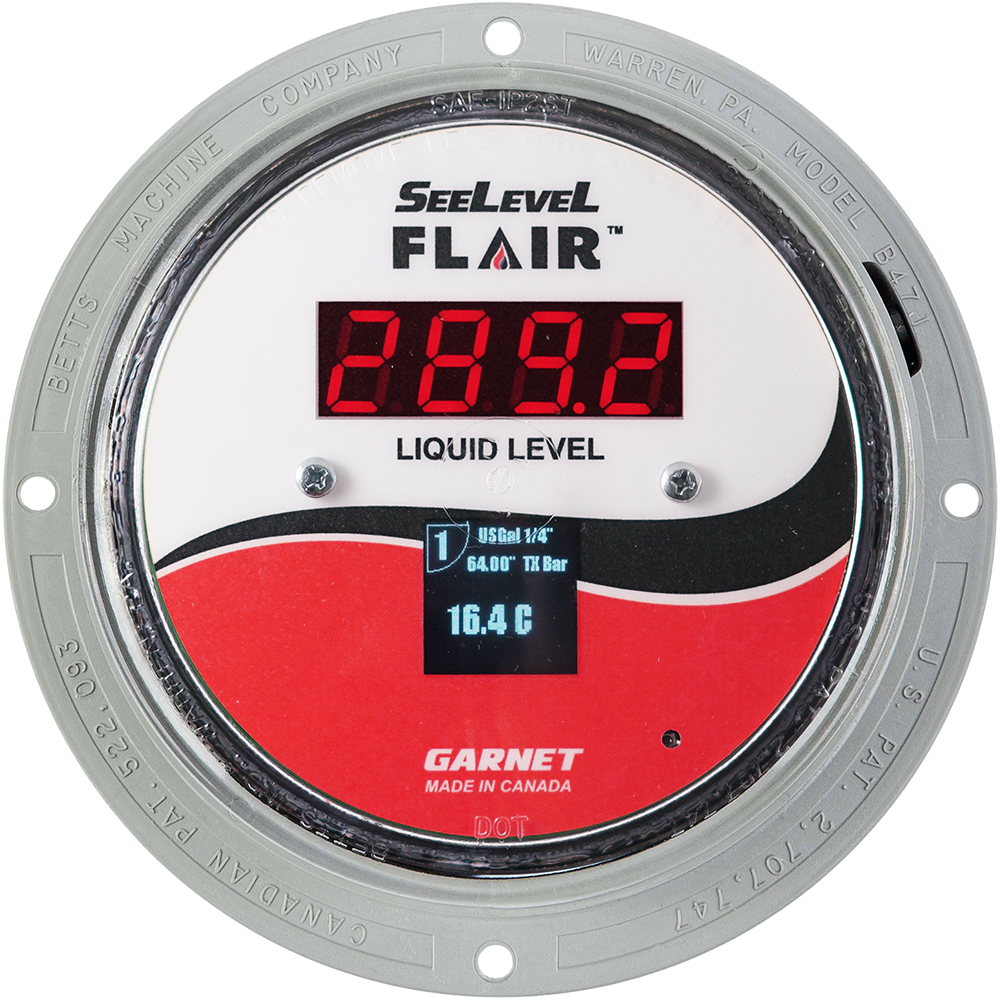

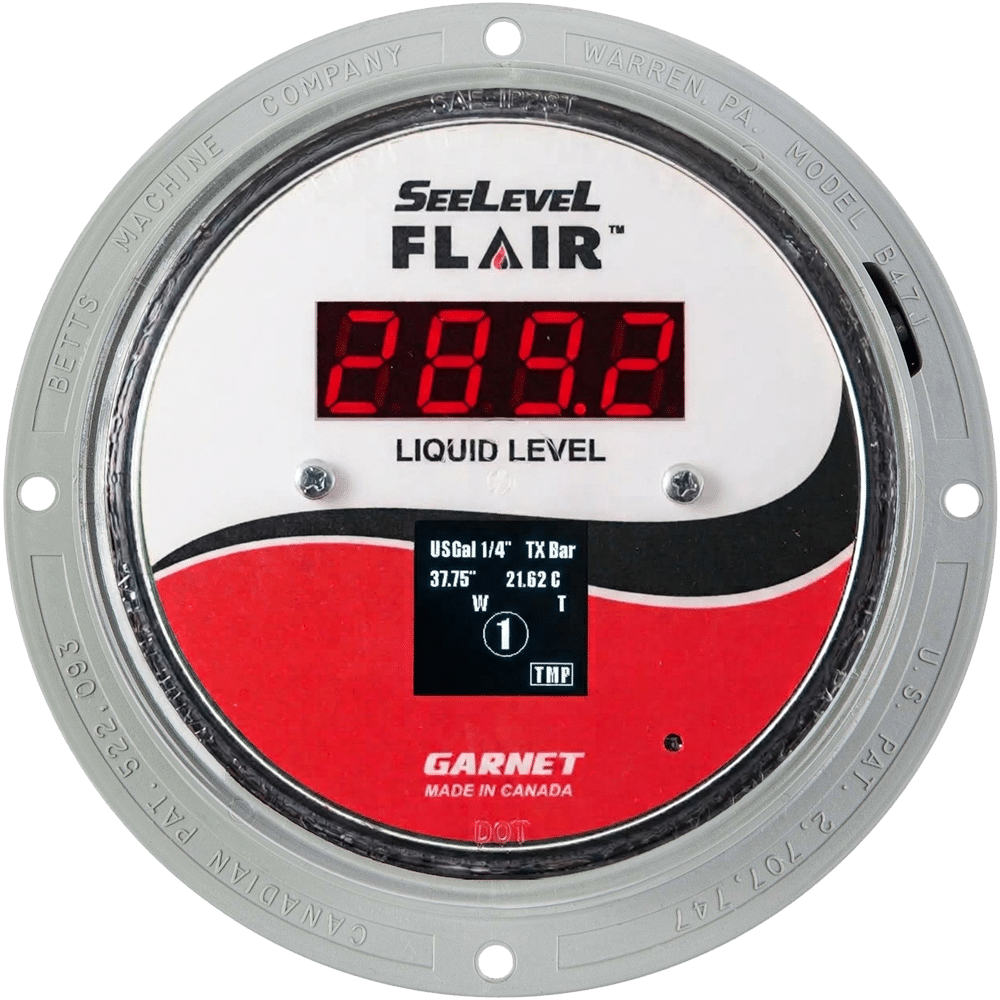

Model 808-BT3

The SeeLeveL Flair™ 808-BT3 is a next-generation dual-compartment fluid level monitoring system, succeeding the SeeLeveL Special, and is designed for tank trucks, featuring advanced connectivity and digital integration.

  • Monitors up to two compartments
  • Provides liquid level and temperature with alarms
  • Bluetooth® connectivity for setup and diagnostics with the SeeLeveL Command app
  • CAN and RS485 communications supported
  • Long-term data logging for records and troubleshooting
  • Operates from standard 12 VDC truck power
  • Compatible with 810-X and 810-TX sender bars
Download Brochure
SeeLeveL TrailerPlex - colored

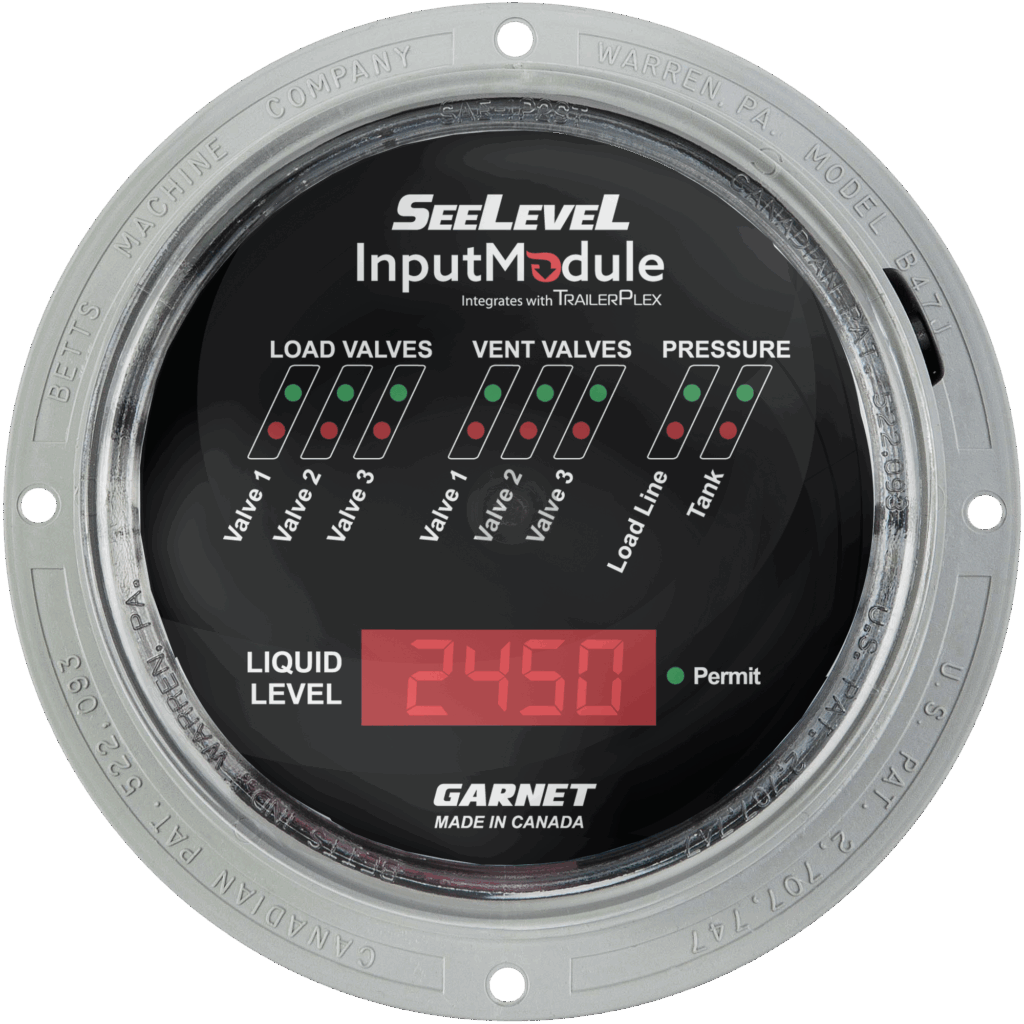

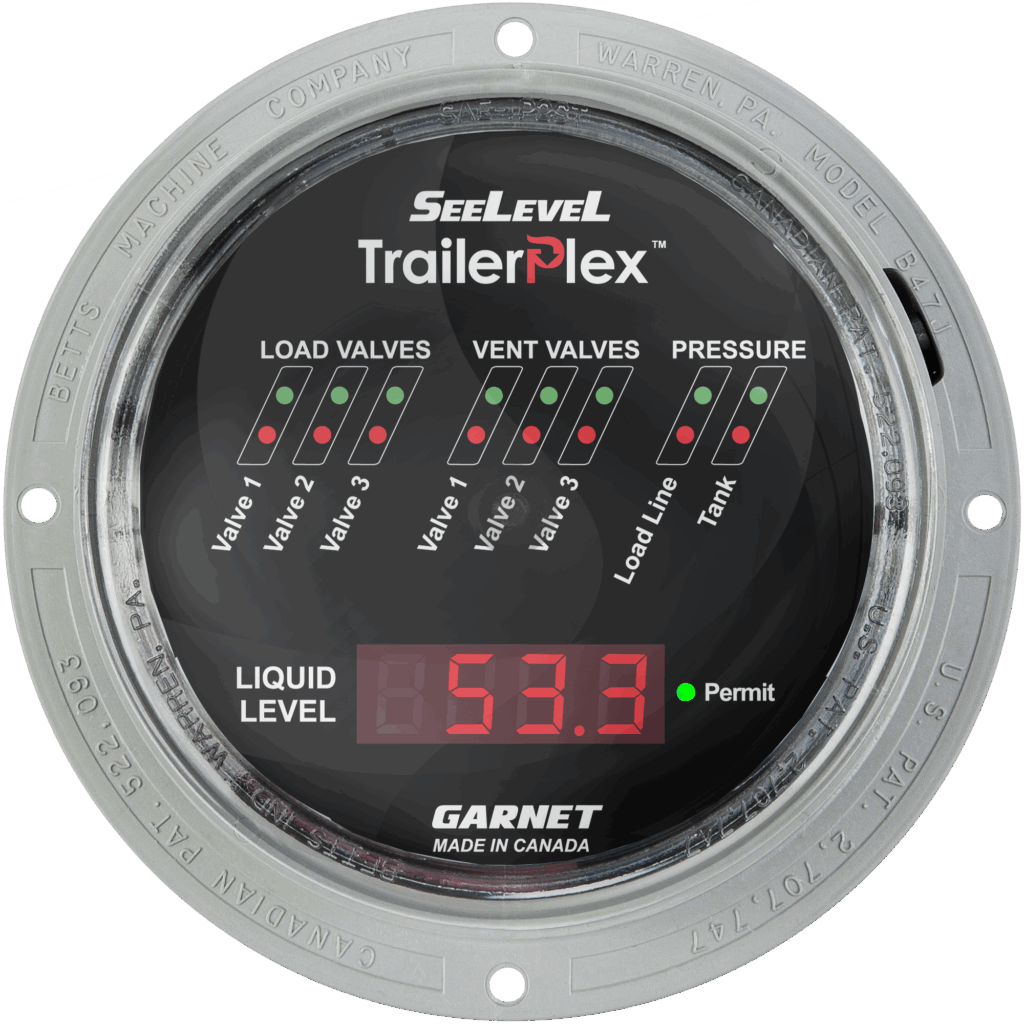

Model 818

The SeeLeveL TrailerPlex™ 818 is a safety-focused interface that monitors up to eight pressure switches to support controlled loading and unloading of liquid transport tanks.

  • Monitors up to eight pressure switches with permit control for pump operation
  • Provides single compartment level and temperature with alarms
  • Logs inputs, levels, temperature, and alarms with time stamps
  • Bluetooth® setup and diagnostics with the SeeLeveL Command app
  • Fiber optic sender connection for added safety in hazardous environments
  • Designed for use with the 810‑TX sender bar
Download Brochure

Final design subject to change.

SeeLeveL Octane Logo-colored

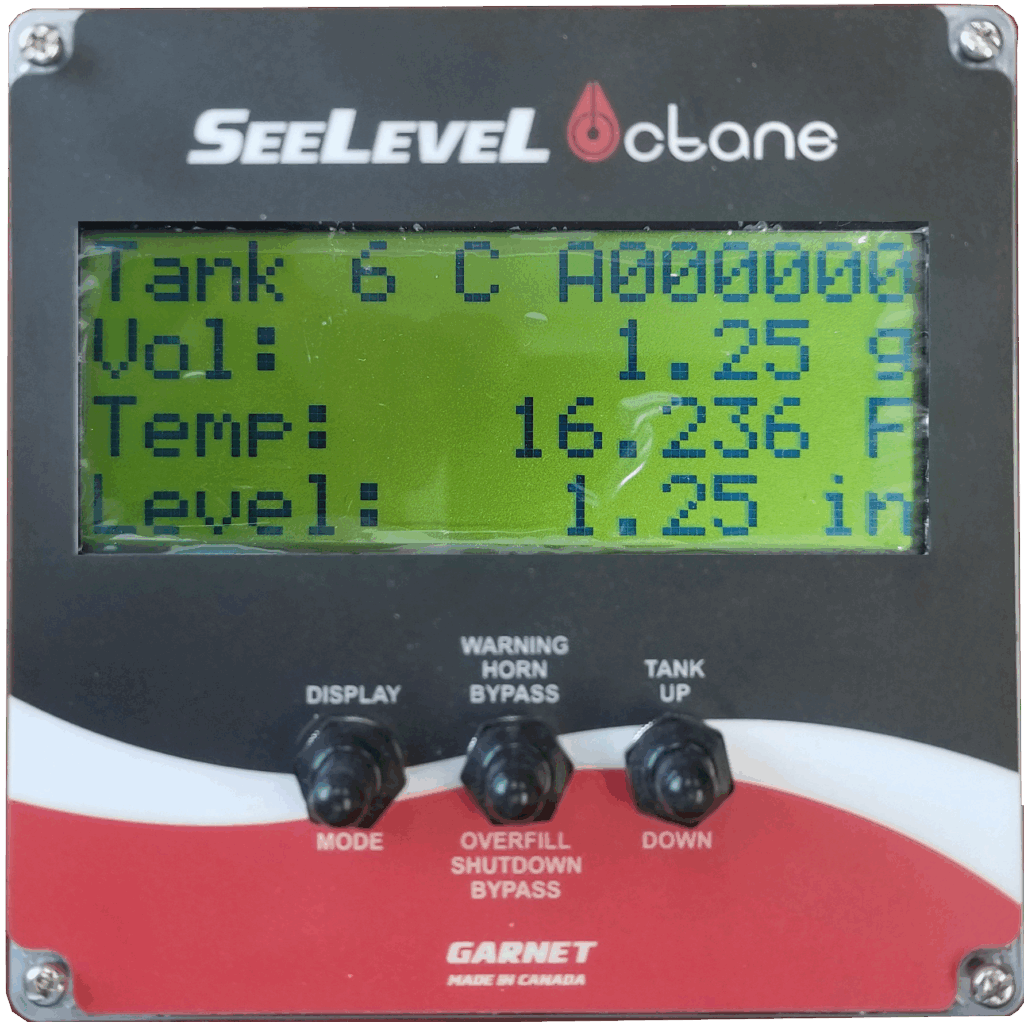

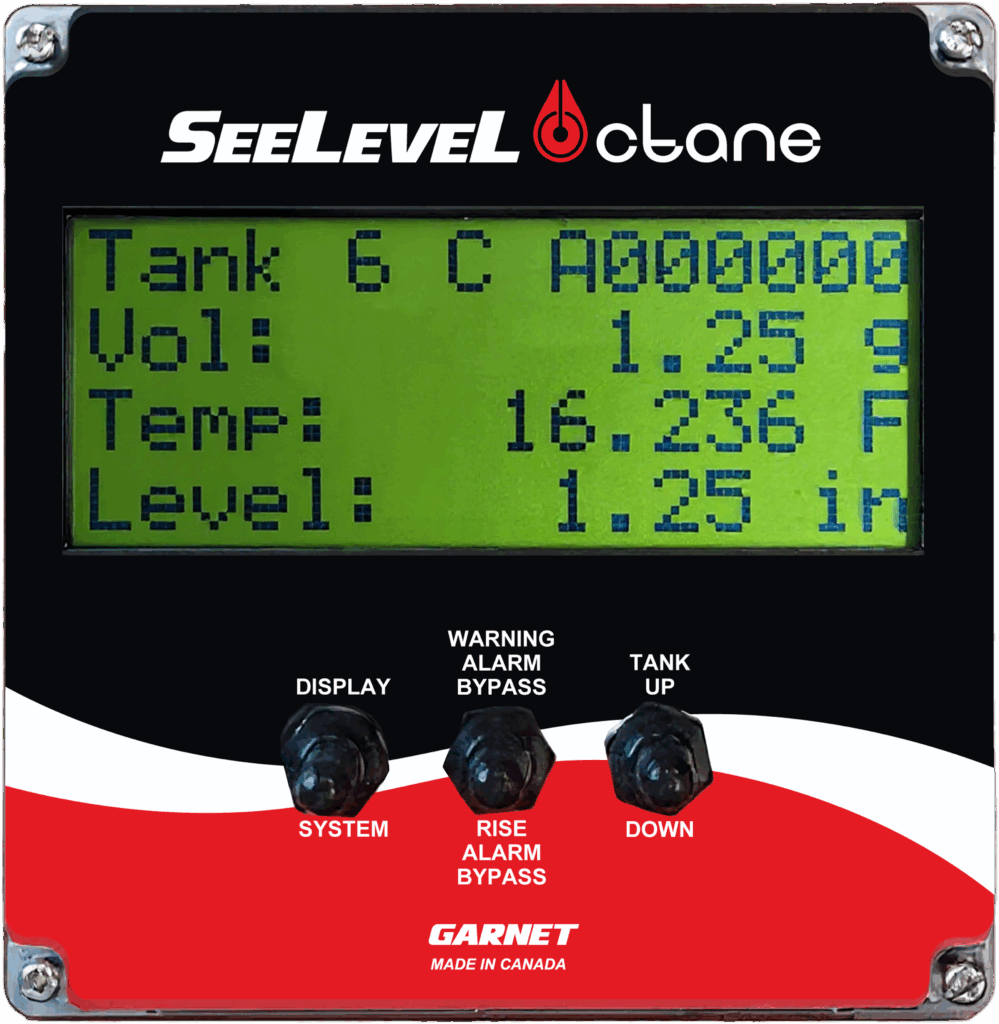

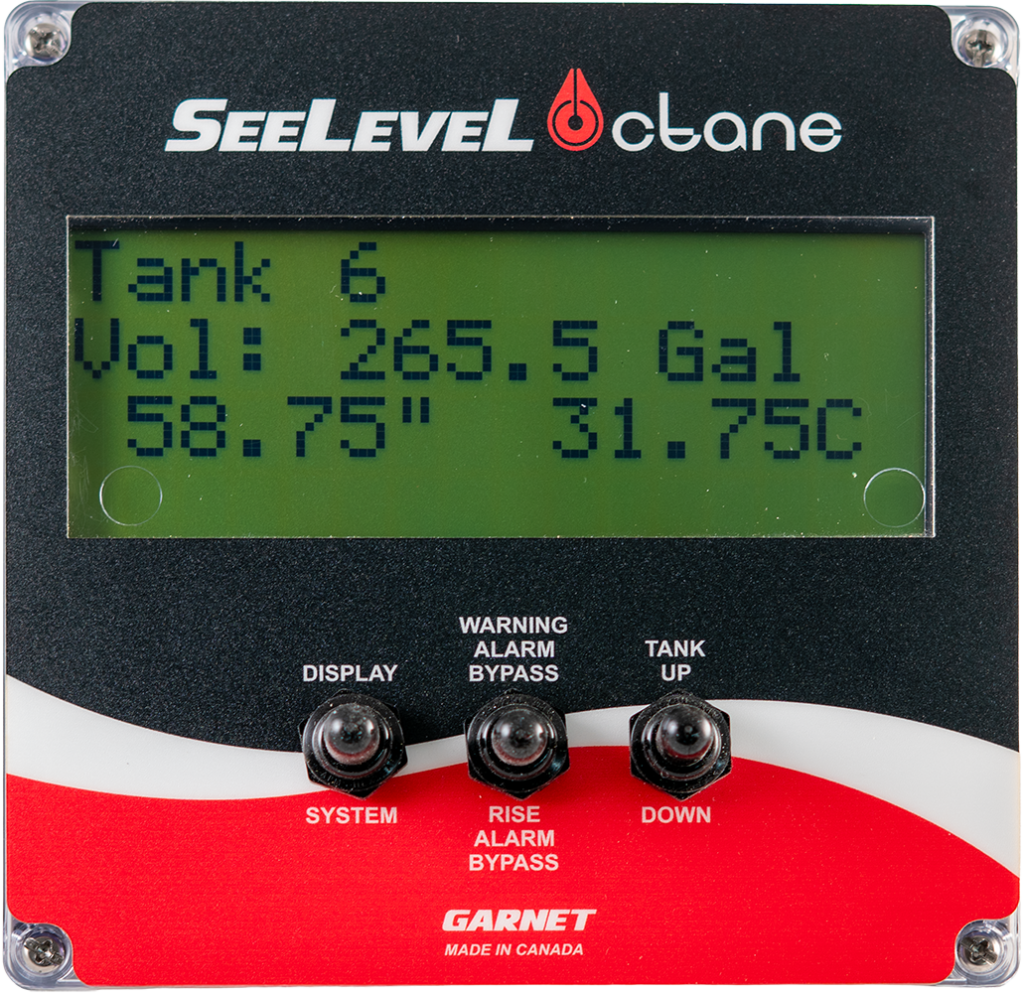

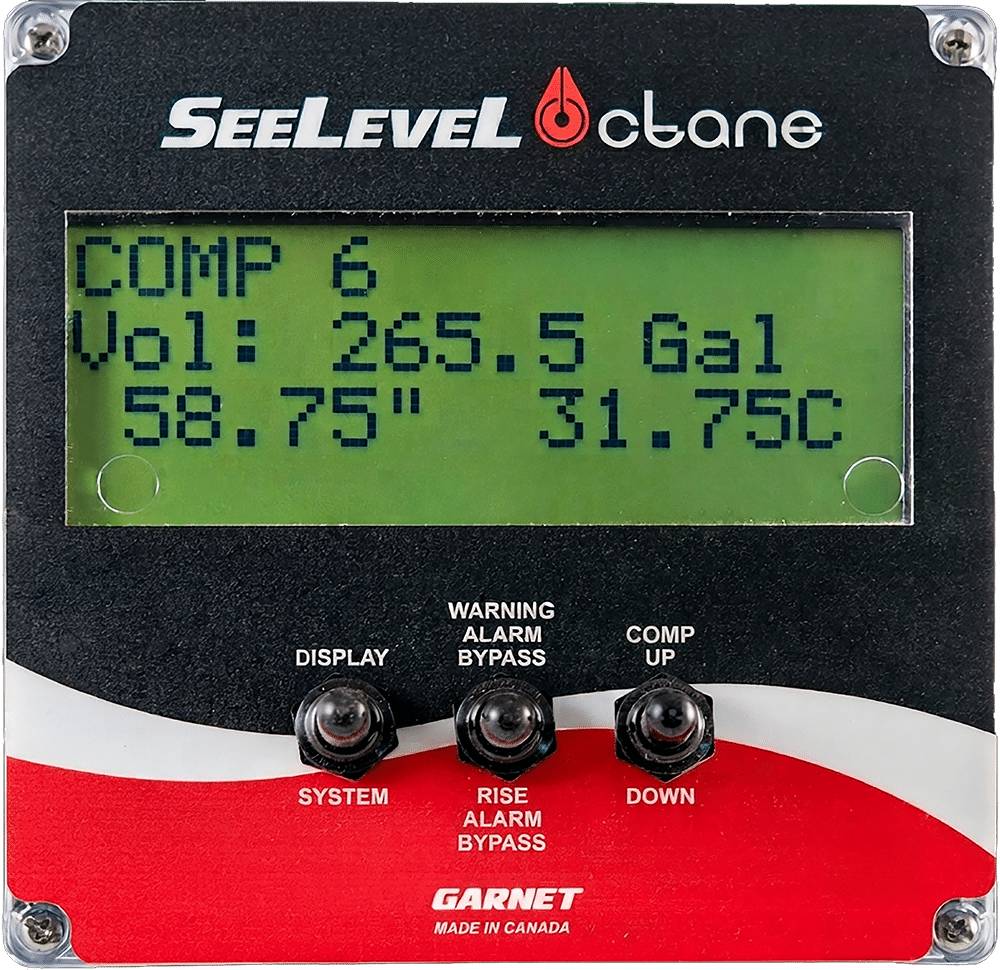

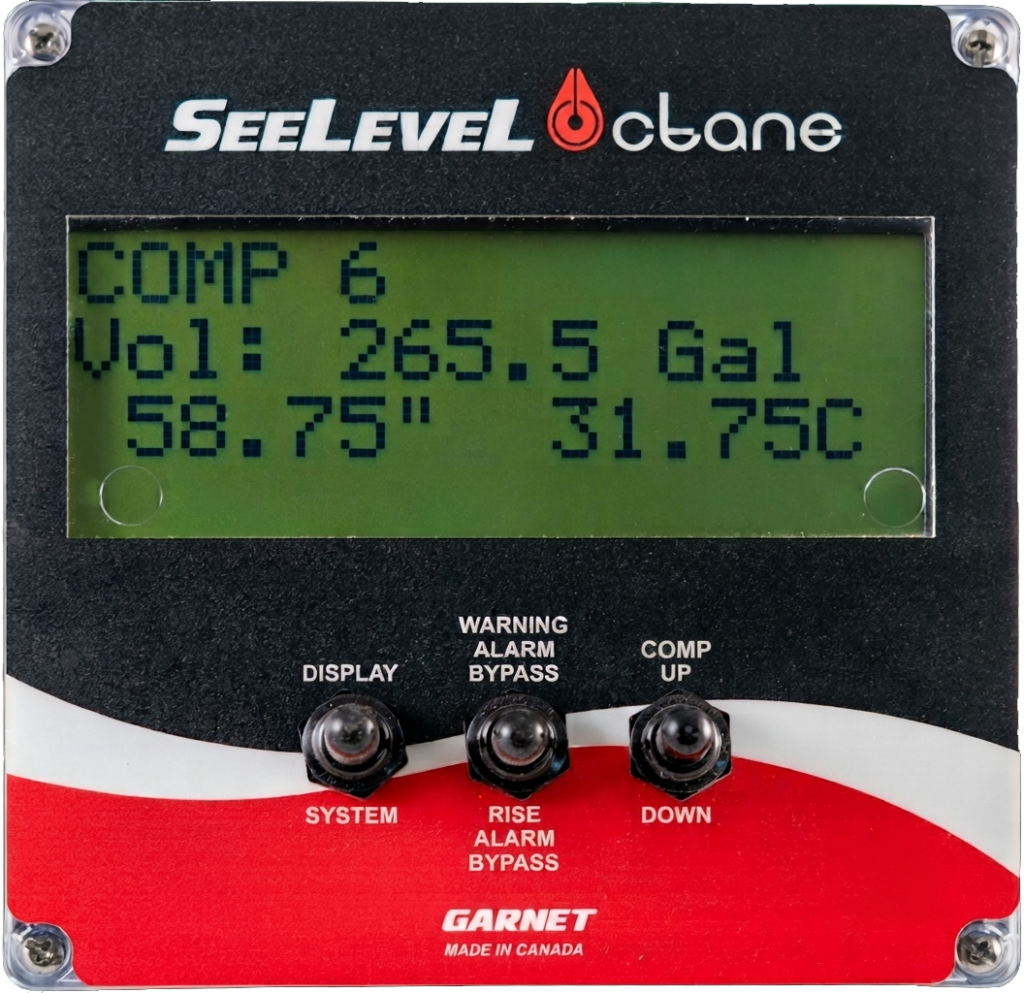

Model 812

The SeeLeveL Octane™ 812 is the ultimate solution for monitoring liquid levels, volumes, and temperatures in multi-compartment truck tanks and trailers. This automated system enhances operator safety, reduces load and unload times, and ensures accurate inventory management.

  • Monitors up to six compartments
  • Provides liquid level and temperature with programmable alarms
  • Bluetooth® connectivity for setup and diagnostics with the SeeLeveL Command app
  • Supports CAN, RS232, RS485, and 4–20 mA communications
  • Long-term data logging for records and troubleshooting
  • Actively monitors alarms during filling with external outputs
  • Compatible with 810-X and 810-TX sender bars
Download Brochure

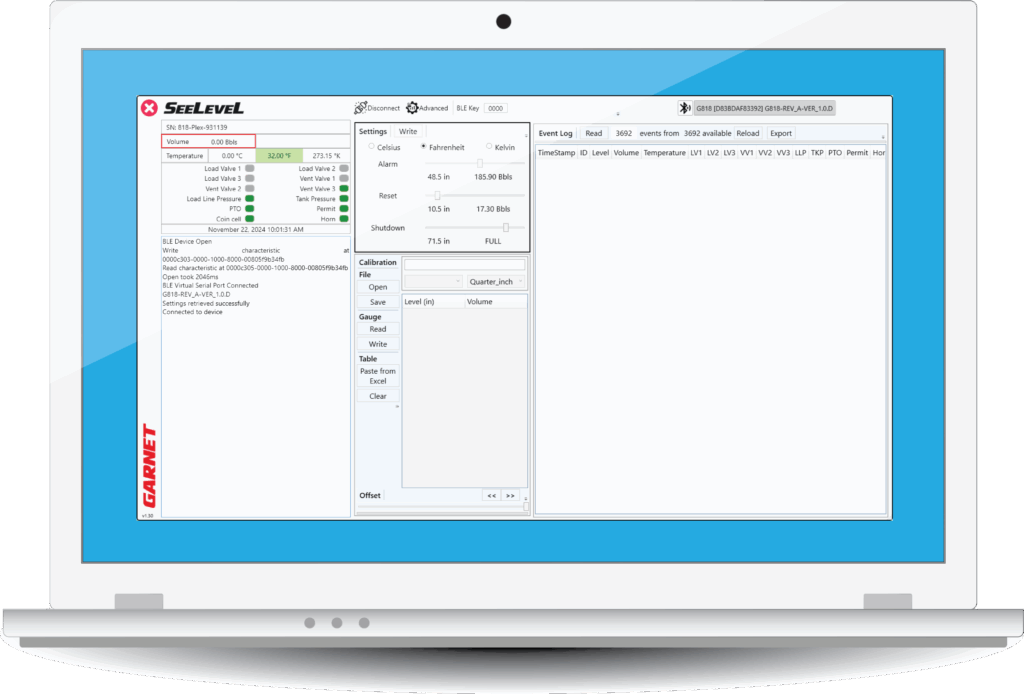

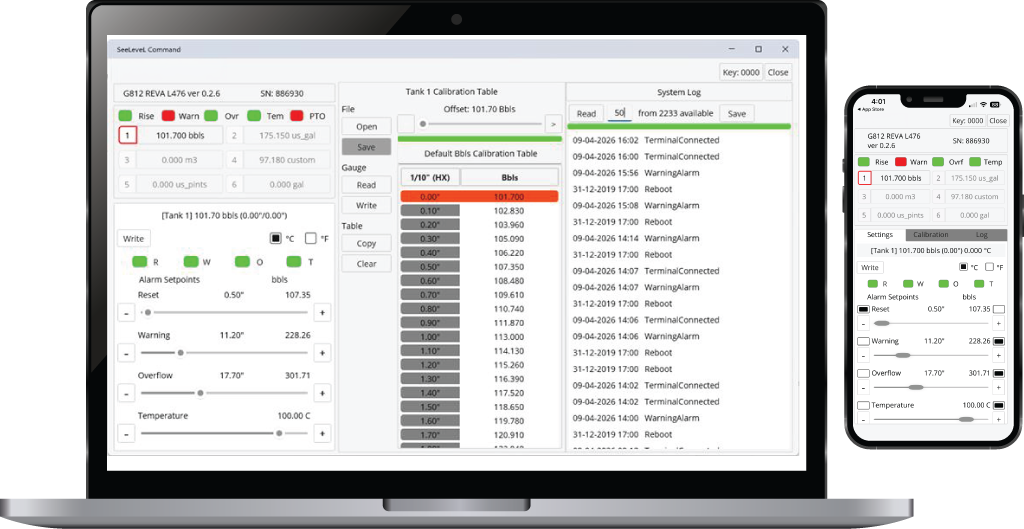

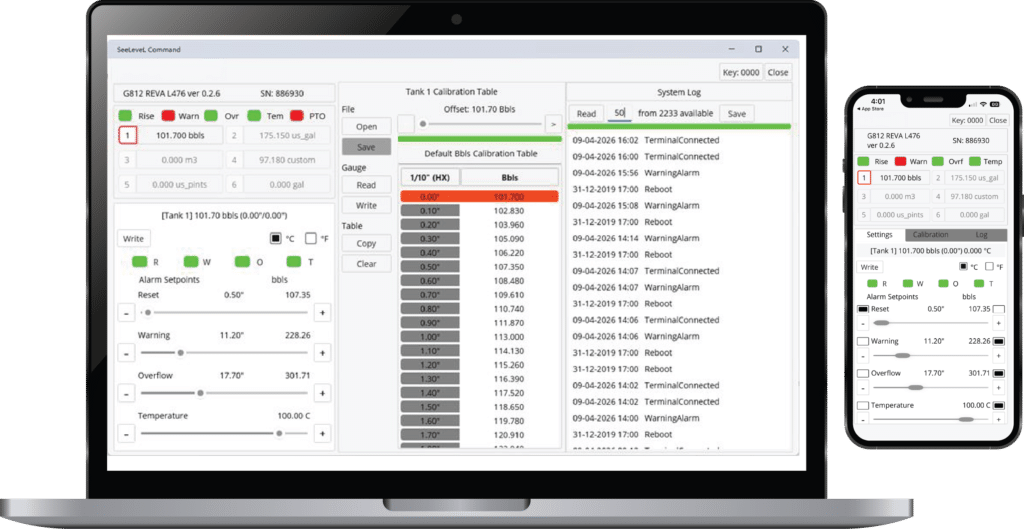

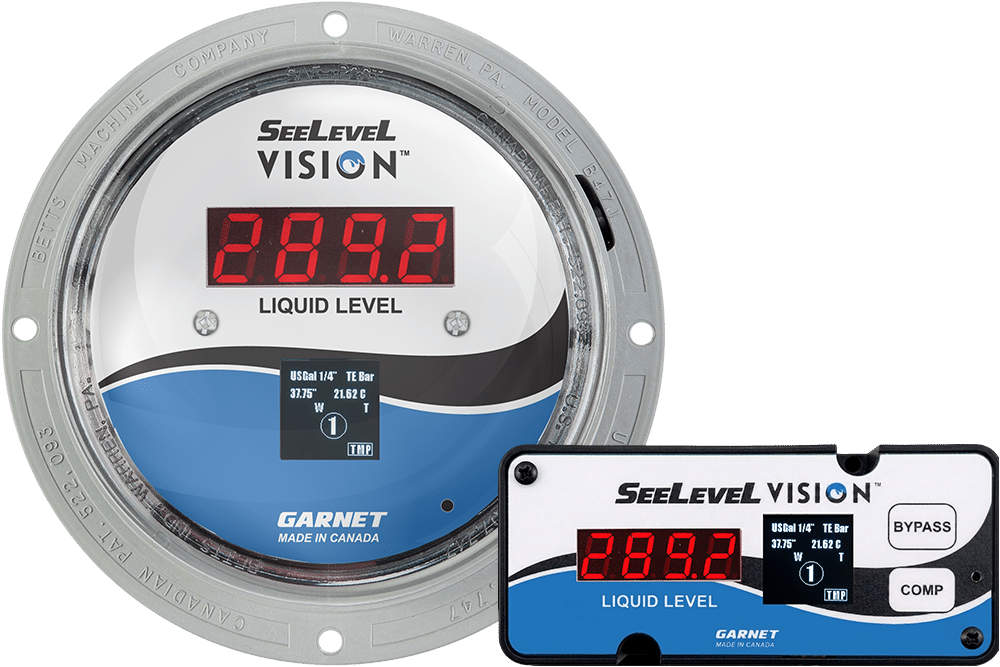

The SeeLeveL Command App™ is the central configuration and diagnostics tool for the SeeLeveL Flair™ 808-BT3, SeeLeveL Octane™ 812, SeeLeveL TrailerPlex™ 818 and the upcoming SeeLeveL Vision™ 806-C and 806-Ci systems. Available for Android, iOS, and Windows, the app makes it easy to configure, calibrate, monitor, and troubleshoot your SeeLeveL system.  Connections can be made wirelessly through Bluetooth® or directly through the device’s internal micro-USB connection on Windows and Android devices when Bluetooth® is unavailable.

  • Monitors one compartment
  • Liquid level, temperature, and inputs logged internally
  • Bluetooth® connectivity
  • View and configure all settings
  • Keeps a log of activity for months
  • Compatible with the 810-TX sender bar

810-TX Sender Bar

The 810-X Sender Bar builds on the proven performance of its predecessor, introducing a suite of enhancements that elevate accuracy, safety, and serviceability..

  • Field Replaceable Battery: Simplifies maintenance and extends product lifespan by allowing quick battery replacement.
  • Redesigned Circuitry: Minimizes damage risk and extends product lifespan.
  • Improved Fluid Measurement: Increased liquid level resolution from 1/3″ to 1/4″ for more accurate readings.
  • Compatibility: Automatically configures with the 808-P2 Rev M (Must be used with 250-STAT-FLOAT), the new SeeLeve Flair, SeeLeveL InputModule, and the SeeLeveL Octane systems.
  • Accurate Temperature Monitoring: Temperature sensors provide fluid level temperature readings with ±0.1°F accuracy.
  • Intrinsically Safe Fiber Optic Connection: Ensures reliable and safe operation in both hazardous and non-hazardous applications.

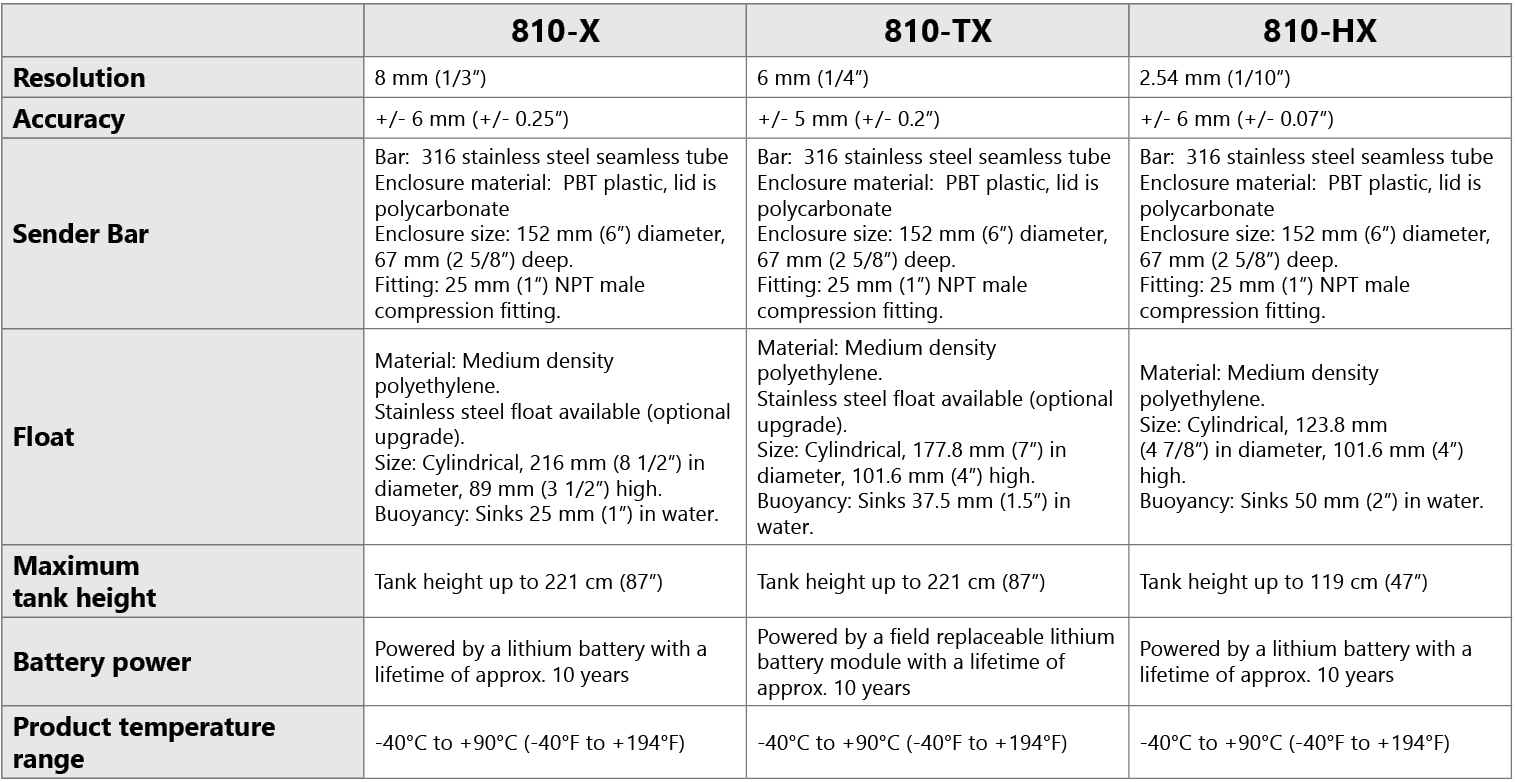

Sender Bar Specifications

The 810 Series Sender Bars are vertically mounted fluid level sensors for tank trucks carrying flammable liquids. Each unit features a float that moves along the bar in response to fluid level changes, transmitting real-time level data via two wires to the display unit.
810-X
810-TX
810-HX
Resolution
1/3” (8.47 mm)
1/4” (6.35 mm)
1/10” (2.54 mm)
Accuracy
±5 mm (±0.2”)
±3.3 mm (±0.13”)
±2 mm (±0.08”)
Maximum tank height
up to 87” (221 cm)
up to 87” (221 cm)
up to 47” (119 cm)
Battery power
Field-Replaceable lithium battery with 10 year lifespan
Field-Replaceable lithium battery with 10 year lifespan
Field-Replaceable lithium battery with 10 year lifespan
Product temperature range
-40°C to +90°C (-40°F to +194°F)
-40°C to +90°C (-40°F to +194°F)
-40°C to +90°C (-40°F to +194°F)
