Truck Grounding Controller for Vehicle Ground Verification
Designed for Flammable Liquid Transfer
Key Features & Benefits
Model 672-H
The SeeLeveL PosiGround ™ Truck Grounding Control System helps prevent fires and explosions caused by a static discharge that builds up during the transfer of flammable liquids. Monitors the ground status and can be set for either 250-ohm high-resistance range or a 10-ohm low resistance range; activates alarms if the ground connection is lost during transfer.
- Verifies that the truck is grounded
- Operates from standard 12 VDC truck power
- Displays the actual ohms level of resistance
- High (250 ohms) or low (10 ohms) resistance range
- Serial port connector for RS-232 communications with a computer or PLC
- Built-in diagnostics
- Warning horn and final alarm
Operation Overview

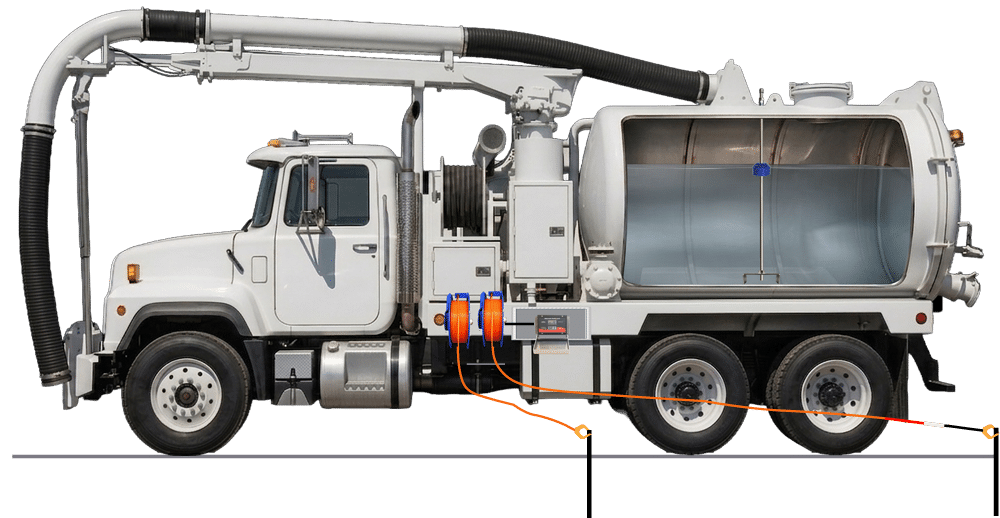

The SeeLeveL PosiGround™ system operates by connecting one clamp to a grounded metal object and the other to a second grounded metal object at least 20 feet away. Ideally, both objects should have a buried portion. The display will indicate when a valid ground is detected and loading or unloading has not yet started. Ground resistance can also be viewed on the display if required.
If loading begins before a ground connection is established, or if the ground connection is lost during operation, a warning horn will sound. If the connection is not made or restored within the preset time, the final alarm will activate. After loading is complete, shut down the loading system and disconnect the ground clamps.
SeeLeveL PosiGround

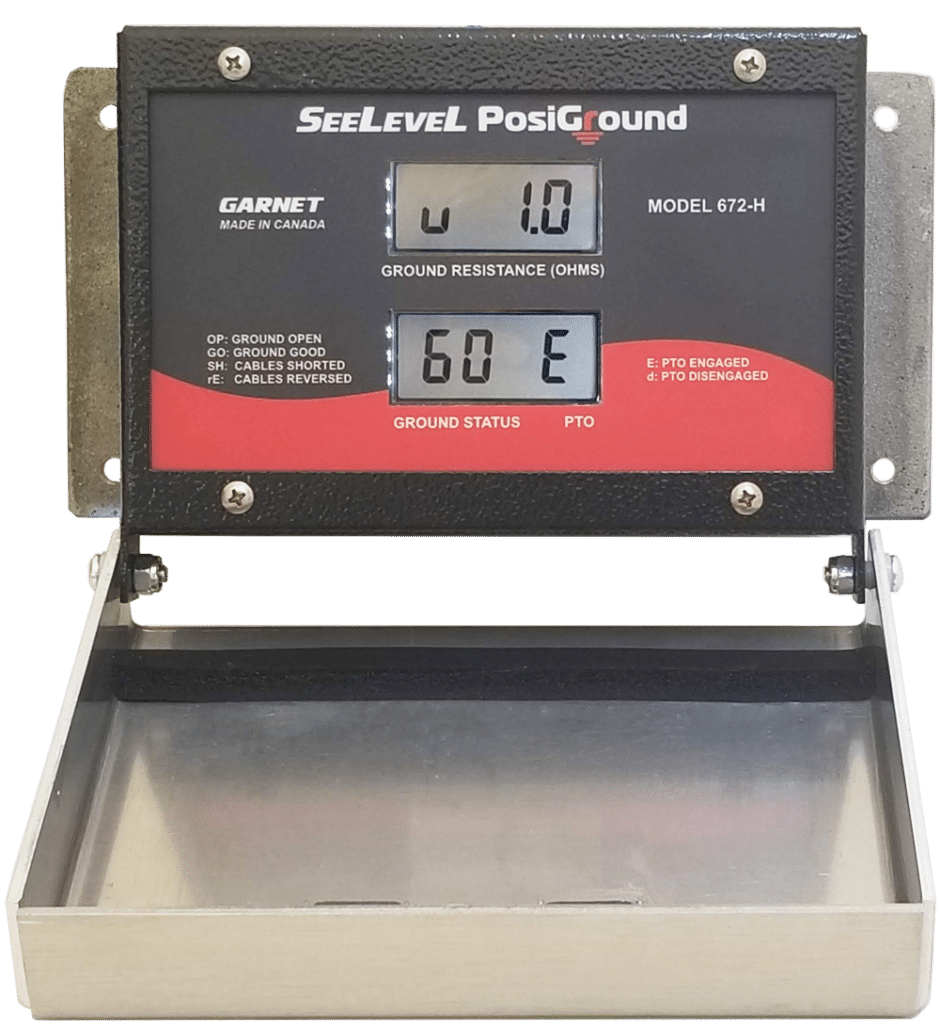

Truck Ground Controller

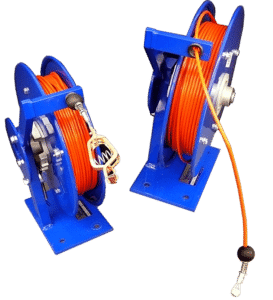

Grounding Cables
Clamp Module
Build Your Complete SeeLeveL System
Explore our Resource Library
Access all technical documentation and more from our Resource Library to get the most from your SeeLeveL Systems
Contact Us For More Information
Learn how the SeeLeveL PosiGround™ can help improve safety and support compliance during the loading and unloading of flammable liquid tank trucks. Contact our experts to find the right grounding solution for your operation.
