Videos for Liquid Transport Products
709-HP3W Features
Monitors: Fresh, Grey, Black, Battery voltage
LPG: Connects to an existing LPG sensor
Switches: 3-way pump switch/single-pole, Water Heater switch/single pole-double throw
System includes: (1) display monitor, (3) tank senders, (2) pigtails, (4) mounting screws
Display option: Multiple displays can be added to the system. To purchase just a display, select the “Display” button.
Senders: When you purchase, you can select from three (3) sender option sizes.
USA STORE
CANADA STORE
709-BTP7 Features (Available Soon)
Monitors: Up to 7 tanks - 2 Fresh, 3 Grey, 2 Black, Battery voltageLPG: Connects to an existing LPG sensor
Switches: 3-way pump switch/single-pole
Other: Bluetooth enabled to connect to latest SeeLeveL RV app, programmable alarm output
System includes: (1) display monitor, (3) tank senders, (1) pigtail, (4) mounting screws
Display option: Multiple displays can be added to the system. To purchase just a display, select the “Display” button.
Senders: This model accommodates 1 to 7 compatible senders (710-AR or ES2). While the system option includes 3 senders, if you require fewer, you can purchase the display and senders separately. When you purchase, you can choose from two (2) sender option sizes.
Level and Volume System
Model 808-P2
- Resettable horn alarm
- SpillStop output
- MultiRack Controller output
- Communications output
- Intrinsically safe
- Weather resistant enclosure
- Internally powered
- Works well in a variety of liquids
- Stainless steel float option
The 808-P2 operates using a magnetic reed switch sender bar detecting the float magnetic field. The system provides a stable resolution of 8 mm (1/3”) and the fixed position of the reeds eliminates any need for recalibration during the life of the gauge.
- (1) 808P2 Display
- (1) Brass Optic Fitting
- Programming Available Upon Request
- (1) 810X Sender Bar with (1) Brass Optic Fitting
- (1) Brass Optic Fitting
- (1) Carbon Steel Compression Fitting
- (1) Stainless End Cap
- Cut & Prep available upon request
- (1) 250-Truck_Float
- Fiber optic Cable (Length determined by the distance between the 808P2 and 810X Bar)
- ¼” Airline (Same length as fiber)
- (1) 1″ NPT Couple
- (1) Anchor Support
- 2-5 Conductor cable
- (1) 815-UHP/815-UHPH SpillStop
- (1) 815-JBC Junction Box
- (1) 688S MultiRack Controller
- (1) 688M Driver Module
Level and Volume System
Models 806-B / 806-Bi
- Inside and Outside displays available
- Monitors up the 3 compartments per display
- 4 Alarm outputs
- One-Time calibration
- ¼” Resolution
- Truck powered

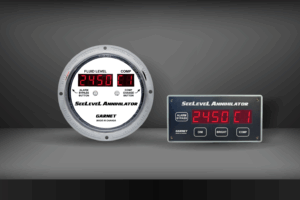

The SeeLeveL Annihilator uses Garnet’s reed switch technology to accurately sense the fluid level in a transport tank with ¼” resolution. The fixed reed position of the reed switches eliminates the need for recalibration during the life of the gauge. As fluid level rises and falls, the floats position is sent through a digital signal to one of the two display options user can choose from. The displays will show the volume of the tank in the preferred unit of measure the customers desires. With the 4 programmable alarm outputs, users can control lights, horns and pumps to streamline the pumping process.
806-B/806-Bi Wiring Diagram Multi Compartment Display Wiring diagram
- (1) 806B or 806Bi Display
- Programming Available Upon Request
- (1) 806AS Sender Bar
- (1) Carbon Steel Compression Fitting
- (1) Stainless End Cap
- Cut & Prep available upon request
- (1) 250-Stat_Float
- (1) 1″ NPT Couple
- (1) Anchor Support
- 2-5 Conductor cable
Liquid management solutions.
USa office
Garnet Instruments Ltd.
286 Kaska Road
Sherwood Park, AB T8A 4G7
Toll Free: 1-800-617-7384
Fax: 780-467-1567
this code comes from
https://applerinquest.com/how-to-add-ribbon-in-elementor/
Model 710-JS Sender
Fits tank heights: 4.5” – 7” tall.
Resolution: 1/4″ (6 mm)
Sender length range: 4″ – 6″ (*can only be used as a single)
Dimensions: 6″ high x 2″ wide
Purchase at RVupgrades.com by selecting the appropriate button.
Model 710-ES Sender
Fits tank heights: 5” – 13” tall.
Resolution: 3/8″ (10 mm)
Sender length range: 4 1/2″ – 12″ (single sender) up to 25″ (dual senders)
Dimensions: 12″ high x 2″ wide
Purchase at RVupgrades.com by selecting the appropriate button.
Model 710-SS Sender
Fits tank heights: 7” – 17” tall.
Resolution: 1/2″ (13 mm)
Sender length range: 6″ – 16″ (single sender) up to 33″ (dual senders)
Dimensions: 16″ high x 2″ wide
Purchase at RVupgrades.com by selecting the appropriate button.
