SeeLeveL™ Sender Bars

Engineered for Demanding Real-World Liquid Transport Applications

SeeLeveL Sender Bars™ are designed specifically for transport tank applications, SeeLeveL Sender Bars™ provide reliable, continuous liquid level measurement for a wide range of products. By using a magnetic float-based design, SeeLeveL™ sender bars deliver accurate digital level data that remains stable over time without reading drift or frequent recalibration.

The Advantages of Float Systems

Accurate LeveL Measurement

A float rides directly on the surface of the liquid, which allows it to accurately measure the true level of the liquid. They are unaffected by foam or surface disturbances, providing reliable and precise readings.
Digital Readings

The system uses magnetic floats tracked by reed switches in the sender bar and sends the readings digitally to the monitor. This digital approach ensures accurate and stable readings.

Versatile in a Wide Range of Liquids

Float systems are known for their versatility and can work well with various types of liquids, including those that may be thick or have unique properties. Over the years, Garnet's float systems have had minimal issues working in thick fluids.
Prevents False Readings

The float system design typically includes a clearance between the float and the sender bar to prevent debris or contaminant buildup. This design feature ensures false readings are minimized.

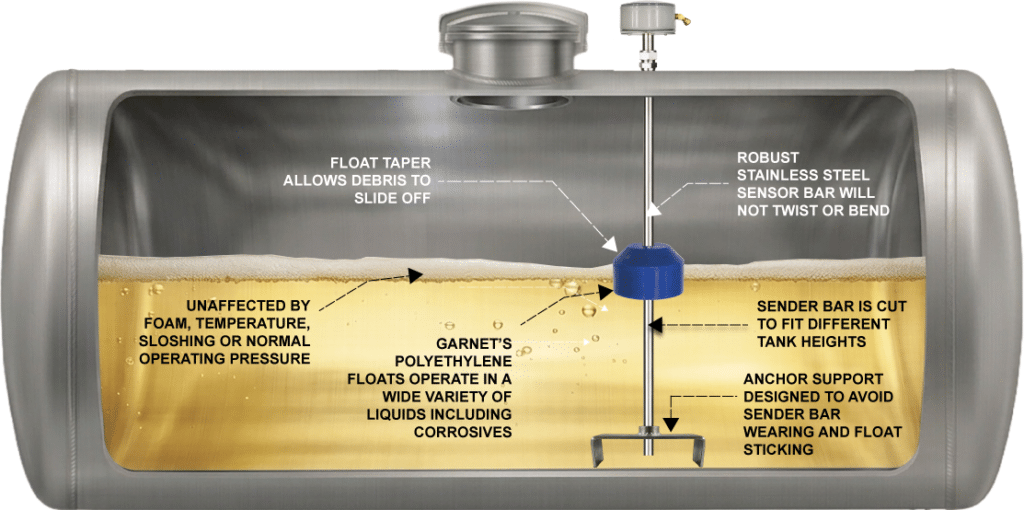

Sender Bar Features

The SeeLeveL™ float-based sender bar is designed for demanding liquid transport applications, the system combines a durable stainless steel construction with chemical-resistant polyethylene floats to deliver reliable performance in a wide range of products, including corrosive liquids. The simple float-based design minimizes maintenance concerns while providing dependable level measurement in challenging operating environments.

Sender Bar Specifications

Use this reference guide to identify the appropriate sender bar for your tank configuration and liquid type.Use this reference guide to identify the appropriate sender bar for your tank configuration and liquid type.

Explore our Resource Library

Access all technical documentation and more from our Resource Library to get the most from your SeeLeveL Systems

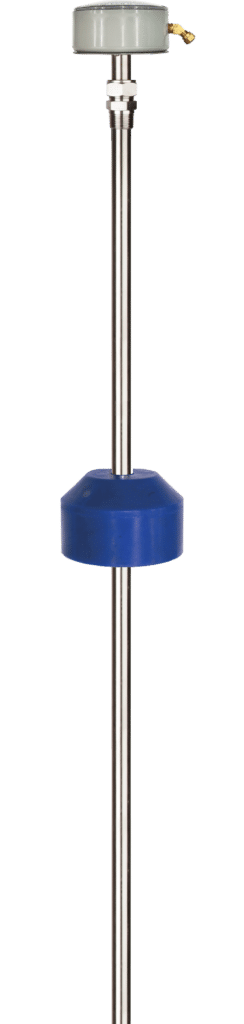

	810-X	810-TX	810-HX	806-TE
FLUID TYPE	Flammable	Flammable	Flammable	Non-Flammable
COMPATIBLE WITH	808-P2, 808-BT3, 812	808-P2, 808-BT3, 812, 818	809-DM	806-B, 806-Bi, 806-C, 806-Ci
RESOLUTION	1/3” (8.47 mm)	1/4” (6.35 mm)	1/10” (2.54 mm)	1/4” (6.35 mm)
ACCURACY	±0.2” (±5 mm )	±0.13” (±3.3 mm)	±0.08” (±2 mm)	±0.13” (±3.3 mm)
FLOAT COMPATIBILITY	250-TRUCK_FLOAT Optional stainless steel	250-STAT_FLOAT Optional stainless steel	250-HX FLOAT	250-STAT_FLOAT Optional stainless steel
MAXIMUM TANK HEIGHT	up to 87” (221 cm)	up to 87” (221 cm)	up to 47” (119 cm)	up to 87” (221 cm)
BATTERY TYPE/POWER	Field-Replaceable lithium battery with 10 year lifespan	Field-Replaceable lithium battery with 10 year lifespan	Field-Replaceable lithium battery with 10 year lifespan	Powered by 12 VDC truck power through the display
