NON-FLAMMABLE LIQUIDS SOLUTION
Equipping you with accurate digital measurements for non-flammable liquids.
The SeeLeveL Annihilator™ system is designed for accurate level measurement of water, sewage, or non-flammable chemicals. The all-digital design eliminates reading drift, ensuring long-term accuracy under all conditions without the need for costly and time-consuming recalibration. The SeeLeveL Annihilator™ monitors up to three compartments, eliminating the need for a display per compartment.
Let us assist you in finding the right system that meets your operational goals.
Core System
Start with a precise level and volume gauge system.
Level and Volume System
Models 806-B / 806-Bi

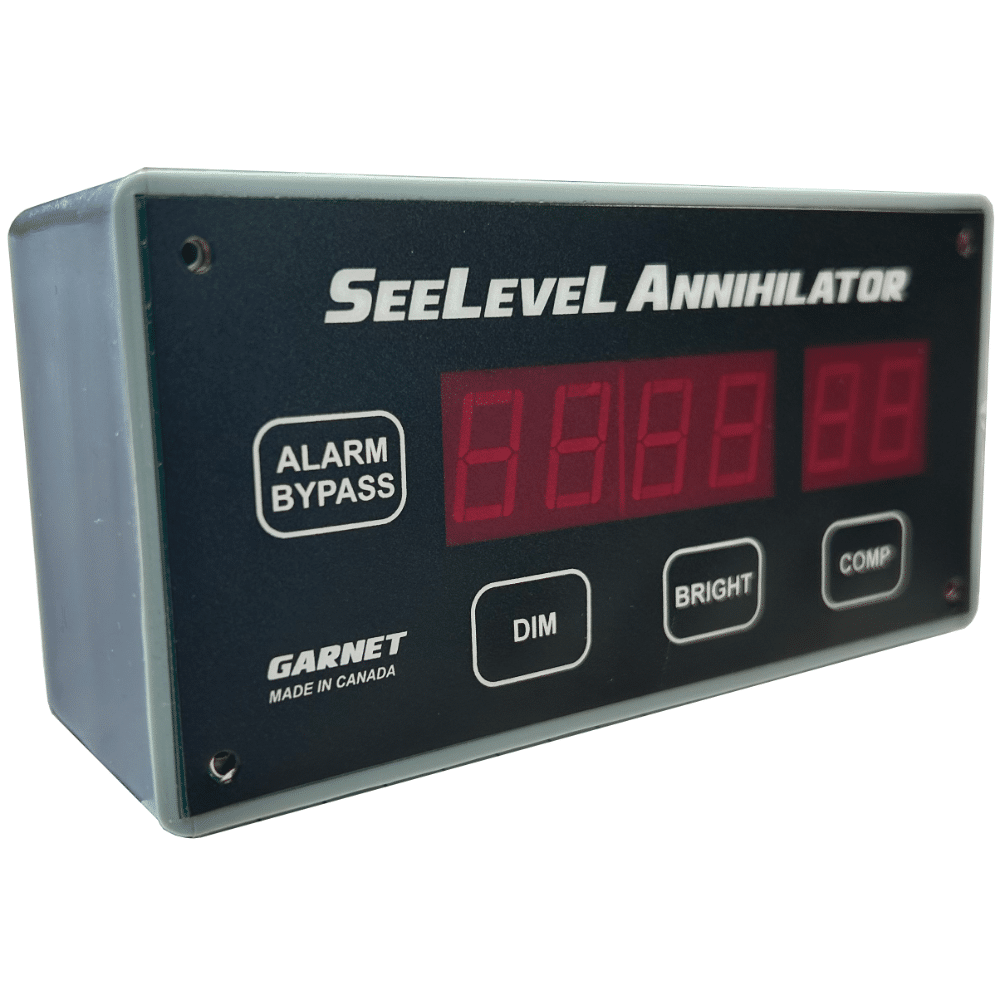

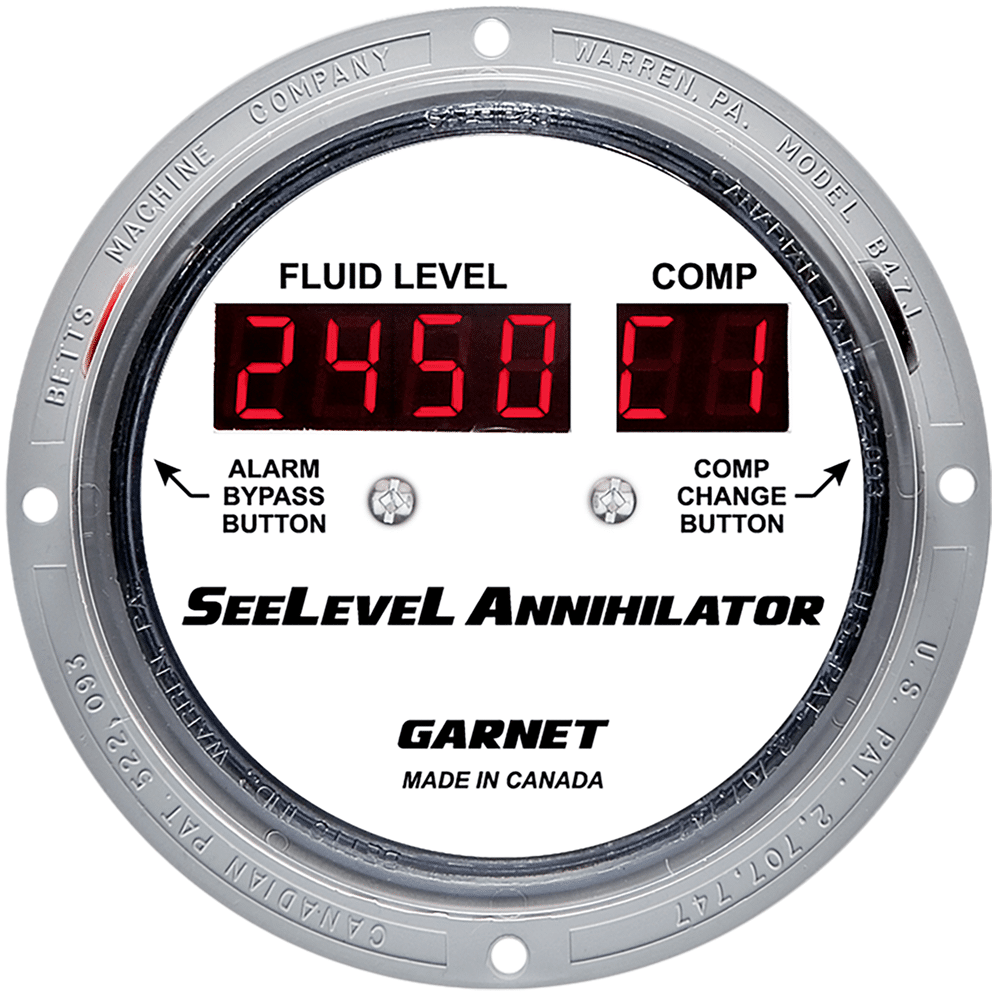

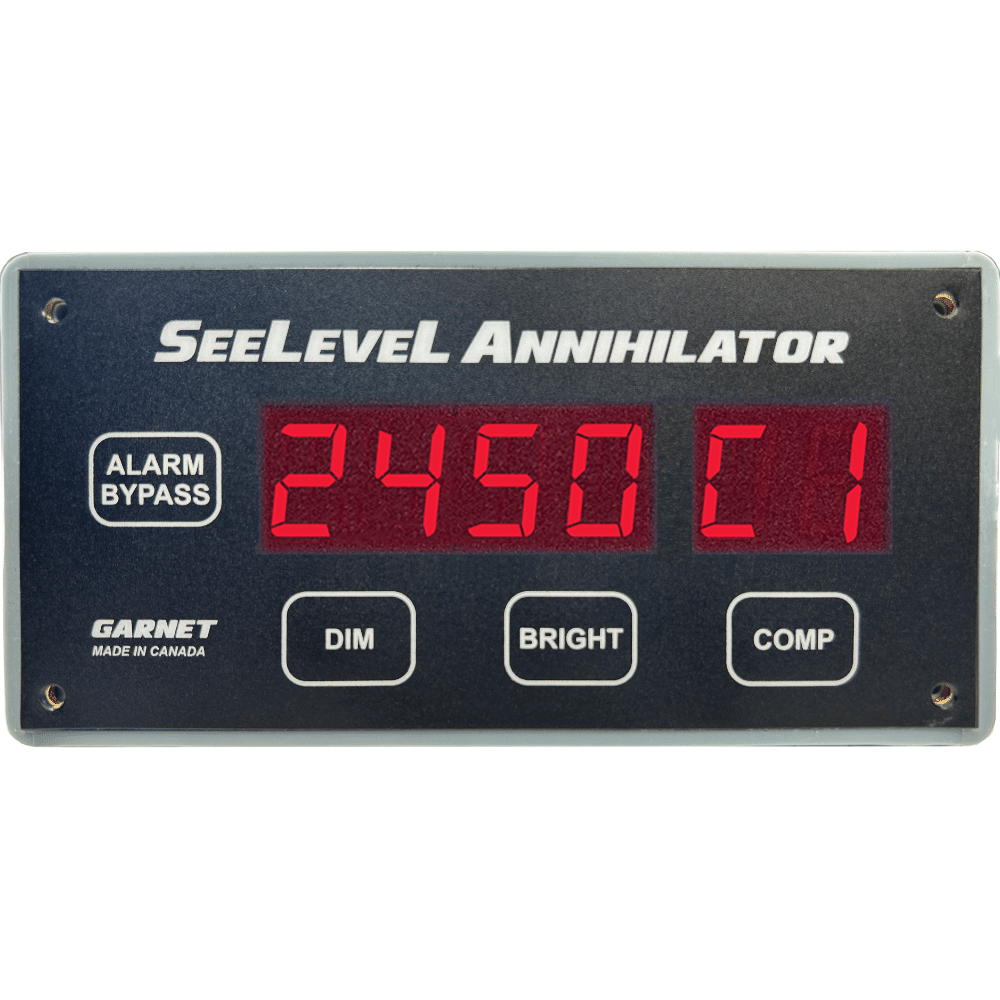

The SeeLeveL Annihilator™ is the ultimate solution for non-flammable liquid level measurement needs for the wastewater transport industry. With its unparalleled accuracy and robust features, the SeeLeveL Annihilator™ system is being widely used in vacuum tanks that haul sewage and grease. Its application extends beyond the industry, making it an ideal choice for various types of liquid level measurement. The system offers two exceptional displays, the 806-B (exterior mounted) and the 806-Bi (in-cab mounted), both capable of monitoring up to three compartments, providing users with ultimate flexibility. If additional compartments need to be monitored, an additional display with a capacity of up to nine compartments can easily be installed. Adding the SeeLeveL Access™ to the system provides not only tank level data but also interfaces with other key systems such as PLC or ELD systems. Trust the SeeLeveL Annihilator™ for your liquid level measurement needs.
- Inside and Outside displays available
- Monitors up the 3 compartments per display
- 4 Alarm outputs
- One-Time calibration
- ¼” Resolution
- Truck powered

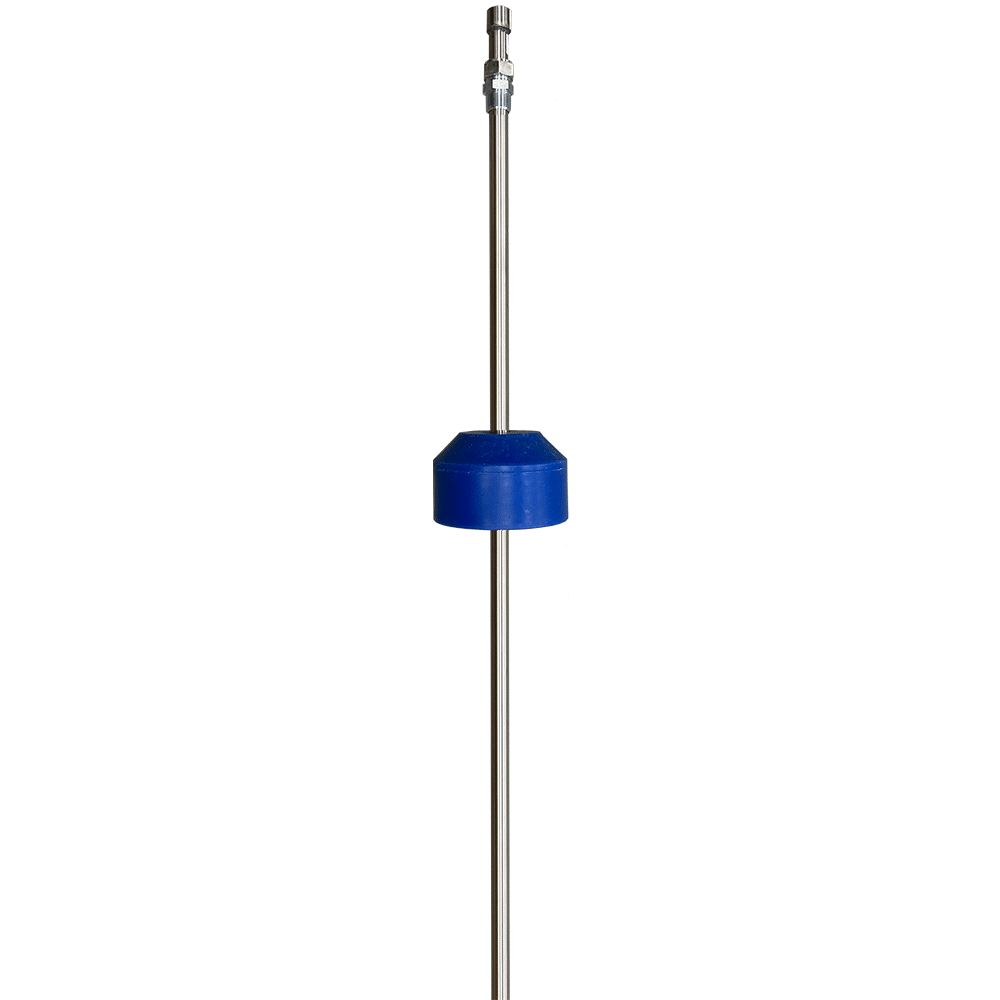

The SeeLeveL Annihilator uses Garnet’s reed switch technology to accurately sense the fluid level in a transport tank with ¼” resolution. The fixed reed position of the reed switches eliminates the need for recalibration during the life of the gauge. As the fluid level rises and falls, the float position is sent through a digital signal to one of the two display options the user can choose from. The displays will show the volume of the tank in the preferred unit of measure the customer desires. With the 4 programmable alarm outputs, users can control lights, horns, and pumps to streamline the pumping process.
806-B/806-Bi Wiring Diagram Multi Compartment Display Wiring diagram
- (1) 806B or 806Bi Display
- Programming Available Upon Request
- (1) 806AS Sender Bar
- (1) Carbon Steel Compression Fitting
- (1) Stainless End Cap
- Cut & Prep available upon request
- (1) 250-Stat_Float
- (1) 1″ NPT Coupler
- (1) Anchor Support
- 2-5 Conductor cable
Additional Support Products
More components to choose from.

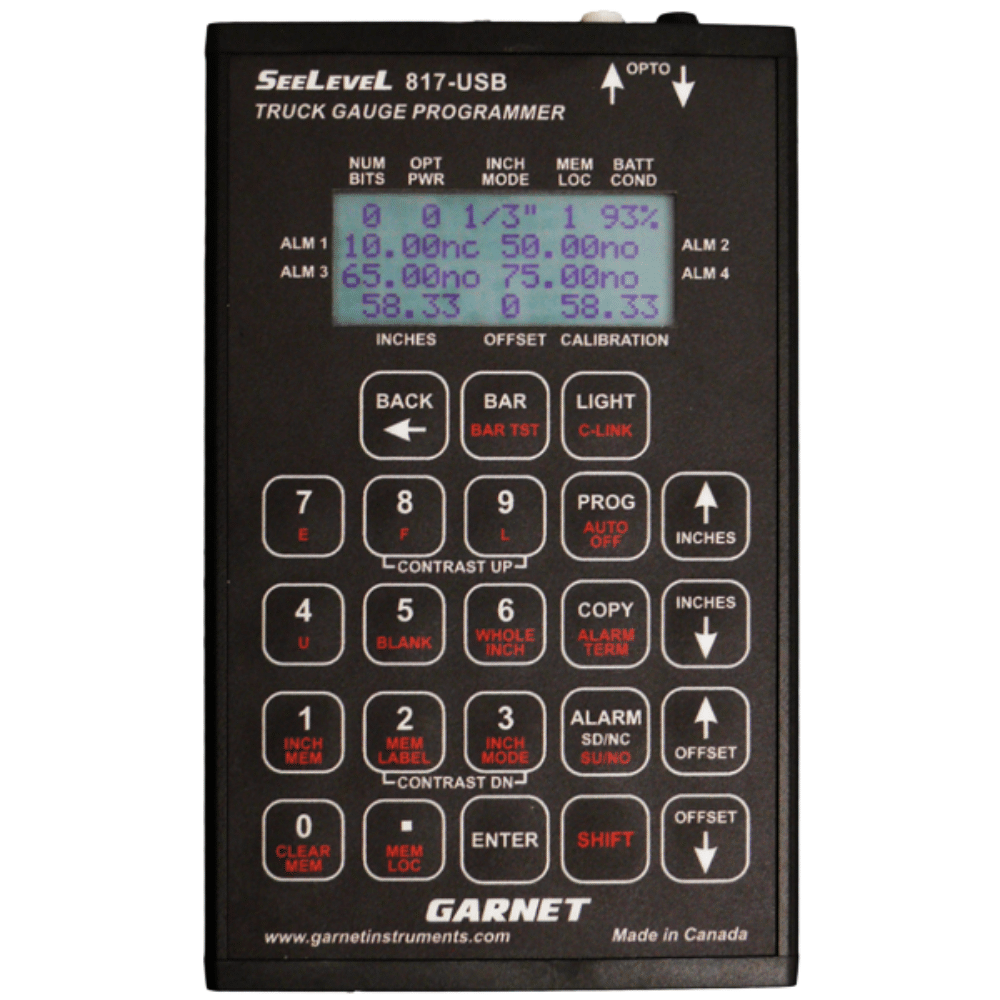

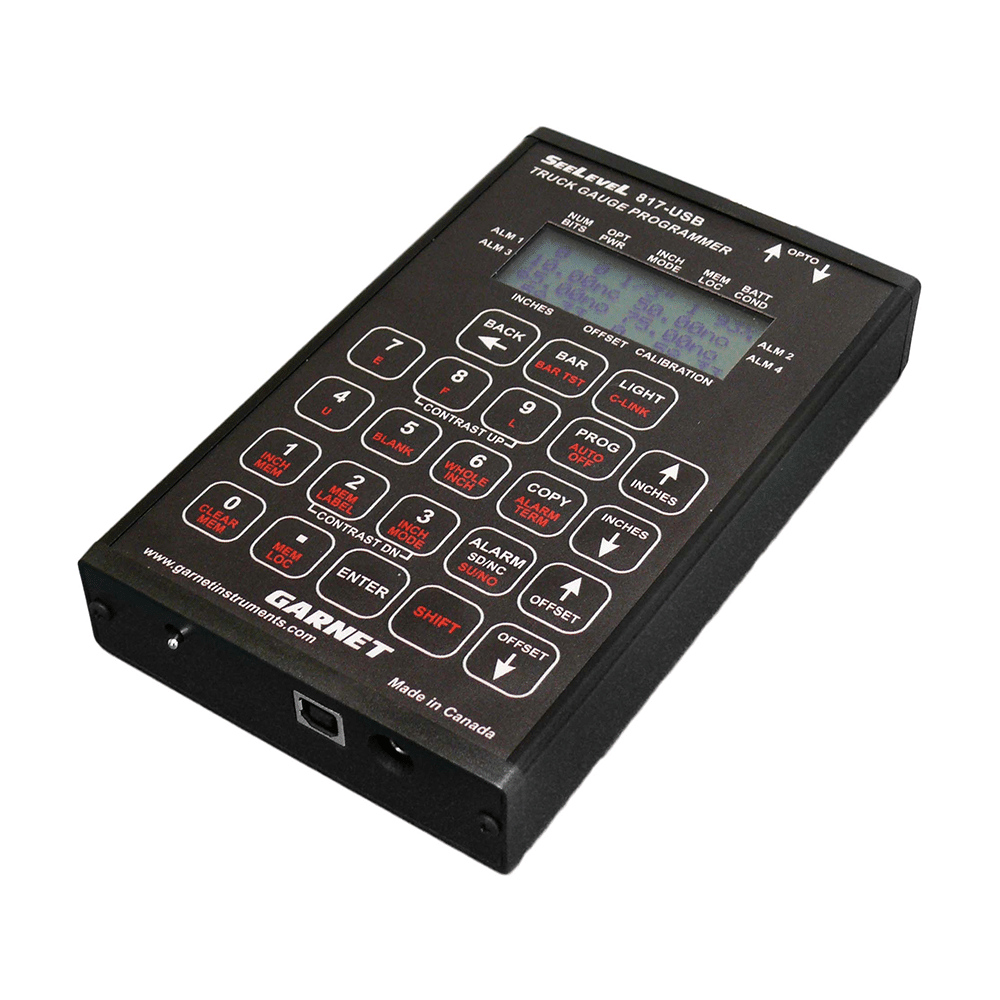

Truck Gauge Programmer
Model 817-USB
The SeeLeveL™ 817-USB Truck Gauge Programmer is used to program tank calibrations and alarms and to troubleshoot any SeeLeveL™ 800 series system. The USB interface allows tank calibration files to be created and stored on a PC or laptop.
- Works with all 800 series displays
- Used to test sender bar displays and fiber optic cable
- Operates on four alkaline AA batteries with no memory loss
- 32 memory locations for storing calibration charts
- USB port interfaces with your PC or laptop running our truck gauge programming software
- Simulates both display and sender bar to simplify system testing
- Convenient hand-held aluminum enclosure helps to avoid errors due to interference and static electricity

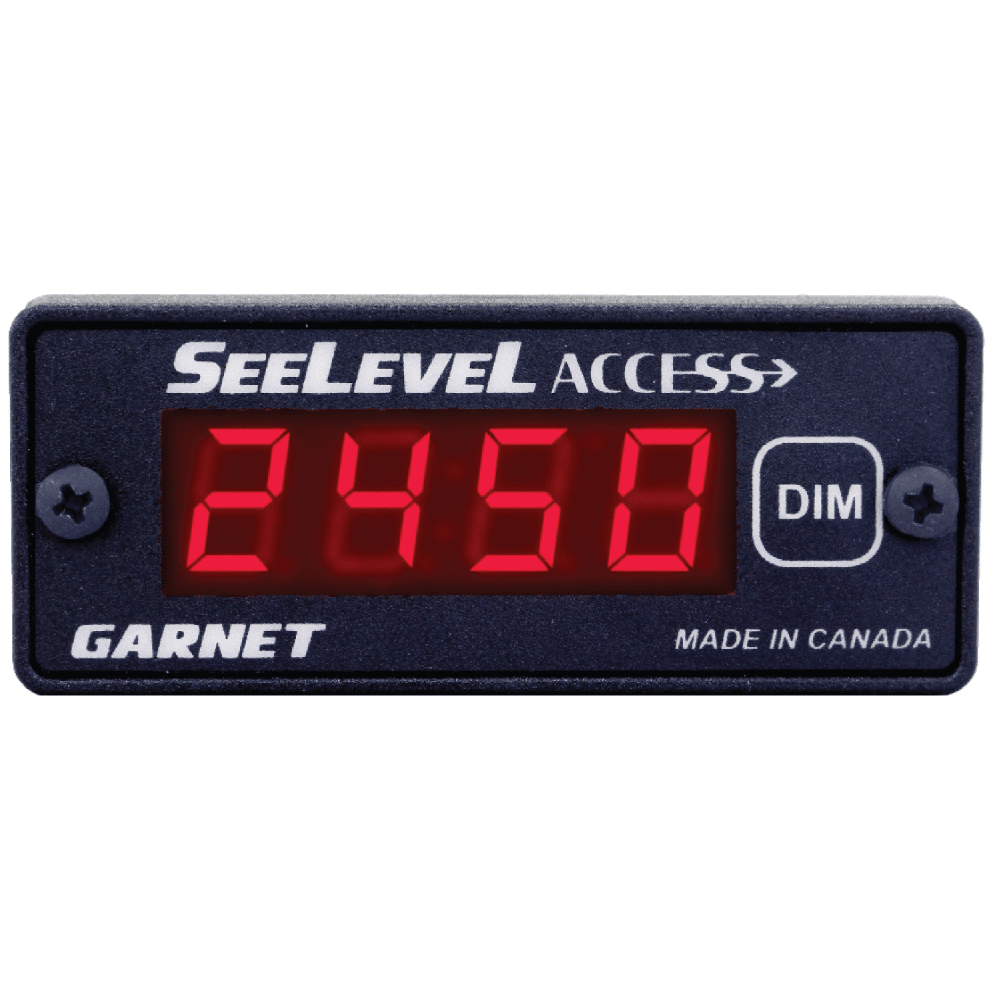

Remote Display & Data Portal

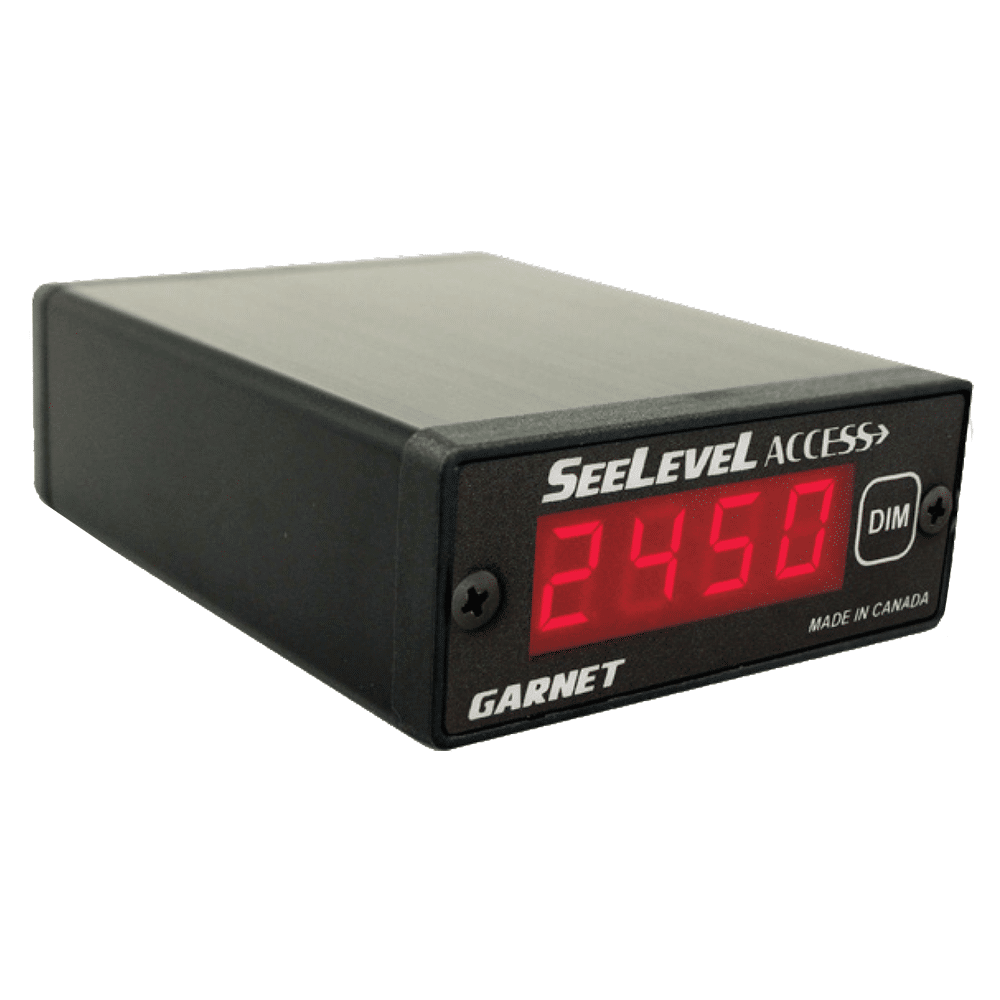

- The SeeLeveL Access™ provides an easy-to-read LED display inside a compact, edge-mounted enclosure. This low-profile design is ideal for top-of-dash or overhead console mounting.
- The dimmer switch enables the operator to control brightness.
- A rugged aluminum enclosure is designed to withstand the vibration and shock encountered in mobile applications.
- Operates on 12 V truck power, drawing less than 150 mA.
- 4-20 mA output can be programmed to any full-scale value desired.
- The RS-232 digital interface provides secure level data as well as unit information.
Model T-DP0301
The SeeLeveL Access™ gathers and ports data from the SeeLeveL Special™ or SeeLeveL Annihilator™ to a wide variety of ELD systems while displaying tank levels inside the truck.
