Dual Tank Level and Temperature System For Flammable Liquids

Engineered for safety, compliance, and reliability.

Contact a Specialist
Download Brochure
.cls-1 { fill: #e31b23; }

ACCURATE DIGITAL MEASUREMENT

.cls-1 { fill: #e31b23; }

SAFE FOR HAZARDOUS FLUIDS

.cls-1 { fill: #e31b23; }

ONE-TIME CALIBRATION

.cls-1 { fill: #e31b23; }

OVERFILL PROTECTION

.cls-1 { fill: #e31b23; fill-rule: evenodd; }

COMMUNICATIONS & MOBILE CONNECTIVITY

Key Features & Benefits

SeeLeveL Flair Logo-colour

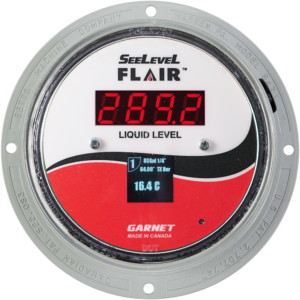

Model 808-BT3

The SeeLeveL Flair™ 808-BT3 is a high-accuracy tank monitoring system for tank trucks carrying flammable or non-flammable liquids. The SeeLeveL Flair™ provides dual-compartment liquid volume and temperature monitoring.  It connects to the sender using fiber optic technology to help prevent the risk of sparking in safety-critical environments. The fiber optic cable can be cut and terminated without special tools or equipment, making installation simple and efficient. It also features Bluetooth® connectivity, onboard data logging, and communication outputs for integration with vehicle and fleet monitoring systems.

  • Monitors up to two compartments
  • Provides continuous liquid volume on an LED display
  • Second utility display shows temperature and alarms
  • Configurable alarm and automatic pump shutdown outputs for overfill protection
  • Mobile app connectivity for system setup and troubleshooting
  • CAN and RS485 communications supported
  • Internal data logging
  • Operates from standard 12 VDC truck power
  • Compatible with 810-X and 810-TX sender bars
  • Add a SpillStop™ or MultiRack™ for increased overfill protection

Operation Overview

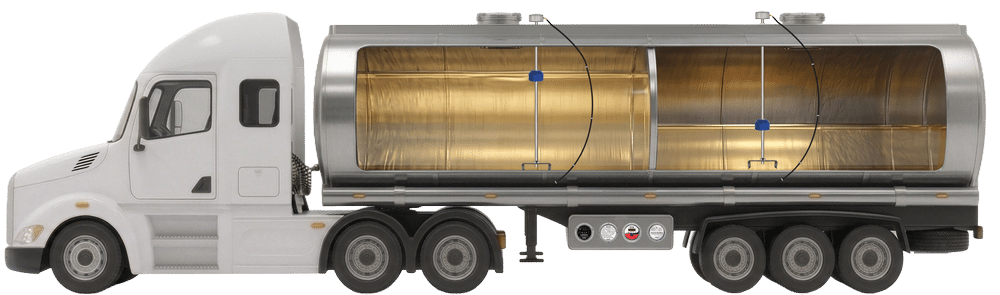

The SeeLeveL Flair™ 808‑BT3 monitors up to two compartments, continuously displaying liquid volume and temperature. The SeeLeveL Flair™ (3) provides configurable high-level alarms, automatic pump shutoff, and emergency overfill protection. Using a vertically mounted 810-X or 810‑TX Sender Bar (5) in each compartment, the system continuously measures liquid volume and temperature and transmits the data via fiber optic cable.

Enhance your tank monitoring system with a range of configurable components designed to increase safety and control. Options include overfill prevention (1), loading rack controller (4), and a junction box (2) for easier wiring. Enhance your tank monitoring system with the SeeLeveL PosiGround™, adding grounding control to help improve safety, streamline operations, and strengthen overall liquid management performance.
1

SpillStop Ultra
Alarm Controller

2

SeeLeveL Junction Box

3

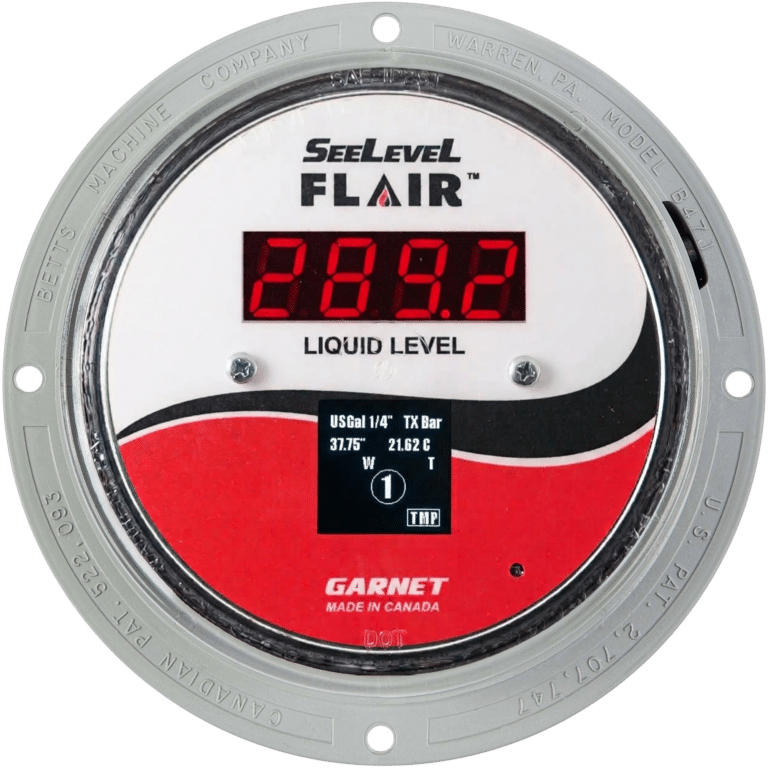

SeeLeveL Flair
Tank Level Gauge

4

SeeLeveL MultiRack
Loading Rack Controller

5

       810-X Sender Bar

     810-TX Sender Bar

5

       810-X Sender Bar

     810-TX Sender Bar

*Select a numbered marker to view each system component.

SeeLeveL™ Sender Bars

Advantages of Float Systems Select to See Why Float Systems Are More Accurate
810-X Sender Bar
810-X Sender Bar
810-TX Sender Bar
810-TX Sender Bar

810 Series

The 810 series sender bars are commonly used in liquid transport applications such as fuel, crude oil, condensate, and chemical hauling, where accurate level sensing and dependable performance are critical to safety and operations. The 810 series sender bars offer fiber optic communication for added safety in hazardous environments where sparking risk is not acceptable

Both sender bars feature a field-replaceable lithium battery with a 10-year lifespan, and are designed for tank heights up to 87″ (221 cm). Optional stainless steel float available.

810-X Sender Bar:

  • Measures fluid level and temperature
  • 1/3″ (8.47 mm) resolution and ±0.2″ (±5 mm) accuracy
  • Compatible with the 250-TRUCK_FLOAT


810-TX Sender Bar:

  • Measures fluid level and temperature
  • 1/4″ (6.35 mm) resolution and ±0.13″ (±3.3 mm) accuracy.
  • Compatible with the 250-STAT_FLOAT

SeeLeveL Command™ App

Configuration Tool

The SeeLeveL Command™ App is the configuration tool for compatible transport monitoring systems. Available for Android, iOS, and Windows, the app makes it easy to configure, calibrate, monitor, and troubleshoot your SeeLeveL system.  Connections can be made wirelessly through Bluetooth® or directly through the device’s internal micro-USB connection on Windows and Android devices when Bluetooth® is unavailable.

  • See all compartment levels at a glance
  • Set tank calibration and offset values for accurate liquid volume readings
  • Configure alarm setpoints and temperature units
  • View system status and device information
  • Perform firmware updates
  • Access troubleshooting and diagnostic tools
  • Retrieve and review system logs and alarm history

Add-On Systems

Add Overfill Protection Enhancements

Protect personnel, equipment, and worksites with configurable overfill prevention solutions.

Alarm Controller

Works in conjunction with compatible SeeLeveL™ gauges to provide an audible warning horn, high level pump shutdowns and hose protection.
Explore SpillStop

Loading Rack Controller

Works in conjunction with compatible SeeLeveL gauges to provide overfill control for optic or thermistor-style loading racks.
Explore MultiRack

Products That Enhance Functionality and Support

Enhance your core system with specialized integration products designed for your application.

Truck Grounding Controller

Helps prevent fires and explosions caused by a static discharge that builds up during the transfer of flammable liquids.
Explore PosiGround
Call For Quote: 1-800-617-7384

Explore our Resource Library

Access all technical documentation and more from our Resource Library to get the most from your SeeLeveL Systems

Go to Resource Library

Contact Us For More Information

Learn how the SeeLeveL Flair™ can provide accurate, reliable tank level monitoring to help keep operations running smoothly.

Contact us to learn which solution is best suited for you.

Call For Quote: 1-800-617-7384
